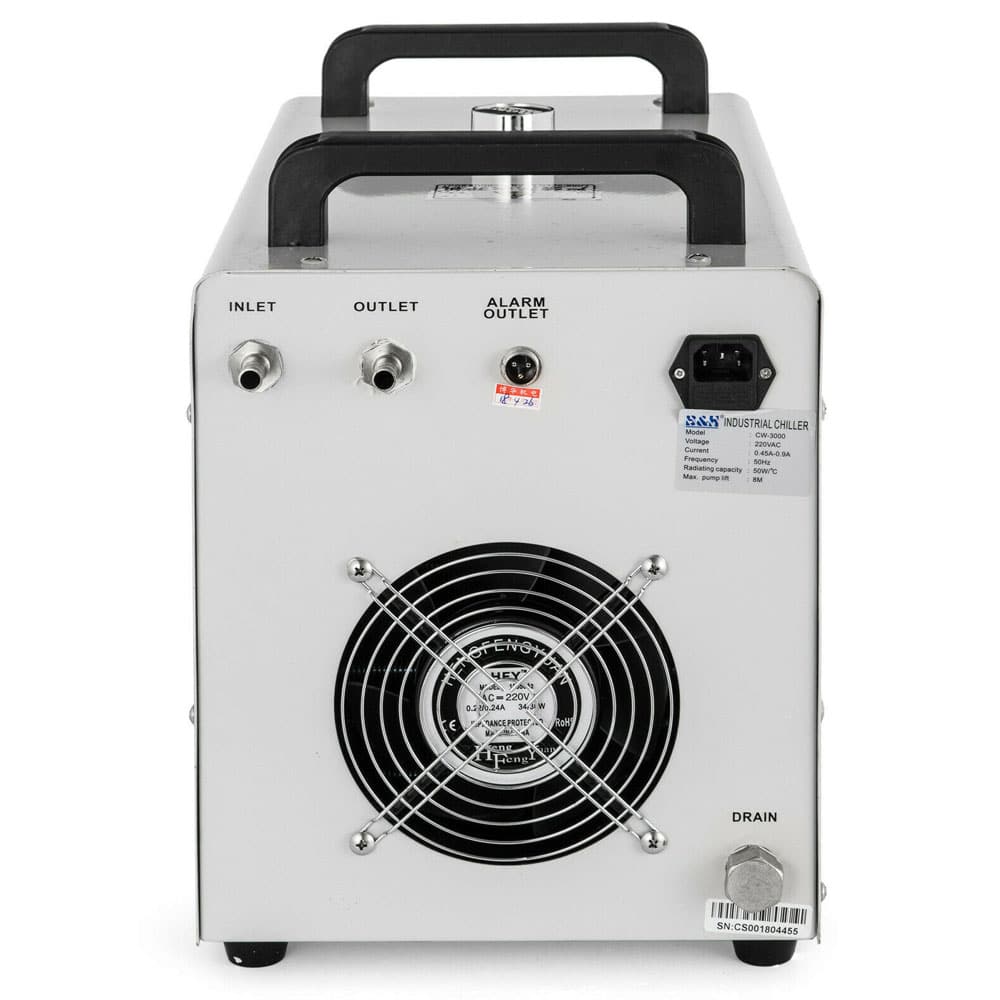

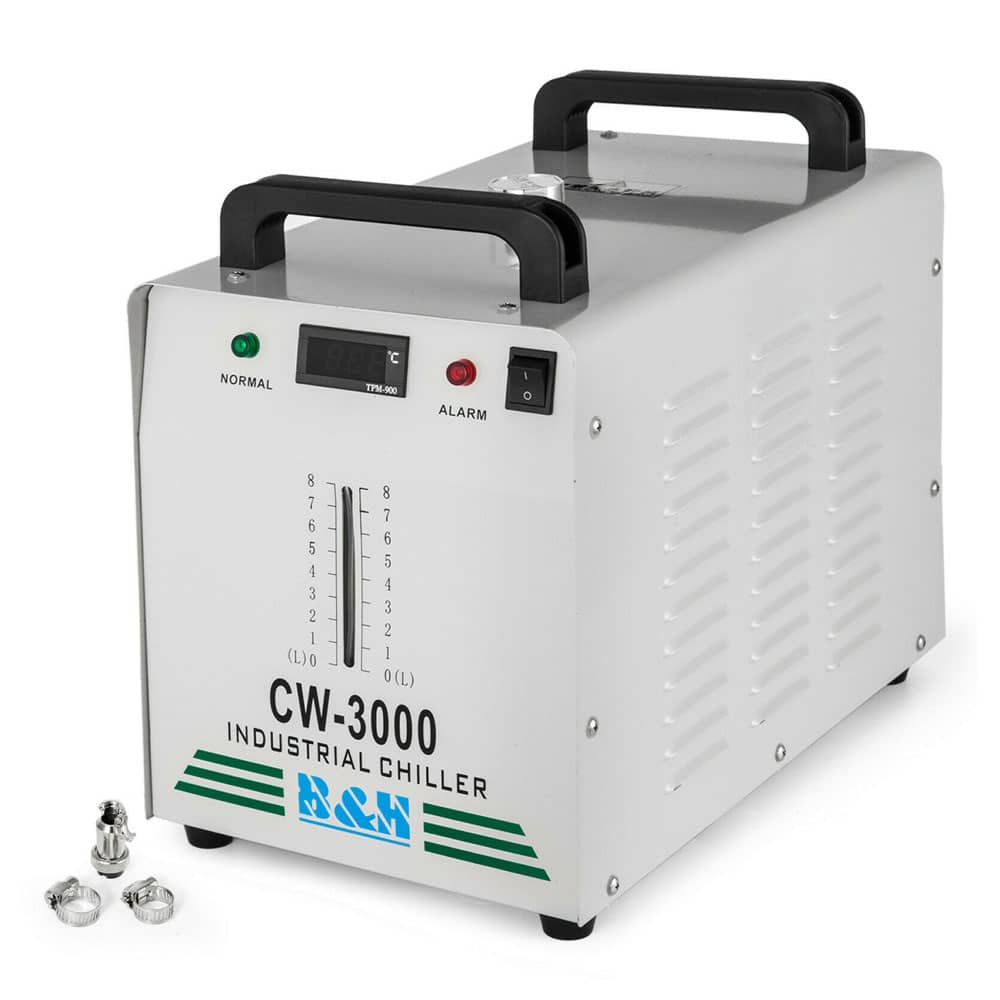

CW-3000 Industrial Water Cooler Chiller

CW-3000 Series is a professional cooling machine referring to international, advanced thermolysis cooling system design, suitable for small water-cooled cooling devices requested machinery. It has 9L cooling tank capacity With completed water flow and over high-temperature alarm functions. Built-In cooling fan for effective ventilation ensures its high heat dissipating capacity. Designed for cooling the one CO2 glass laser tube under 60W/80W of the laser engraving and cutting machine.

• Product Parameter
• Efficient Cooling Fan
• Accurate Thermostat
• Various Alarm Functions

Specifications

• MODEL: CW-3000AG
• Voltage: 220V
• Frequency: 60HZ
• Current: 0.45A
• Cooling: 50W/℃
• Capacity: 9L
• Max.Lift: 10M
• Max.Flow: 10L/Min
• N.W: 9.5kg
• G.W: 12kg
• Protection: Flow Alarm
• Package: Carton Box
• Way Of Circulation: Water Pump Forces Circulation
• Dimensions: 470mm*270*370mm (L*W*H)
• Packing Dimensions: 590*380*470mm (L*W*H)
• Inlet And Outlet Hold: Outside Dimensions 10mm Brass Connector

Packing List

• 1 × CW3000 Water Chiller Machine
• 1 × Power Cable
• 1 × User Manual
• 2 × Sealing Washer

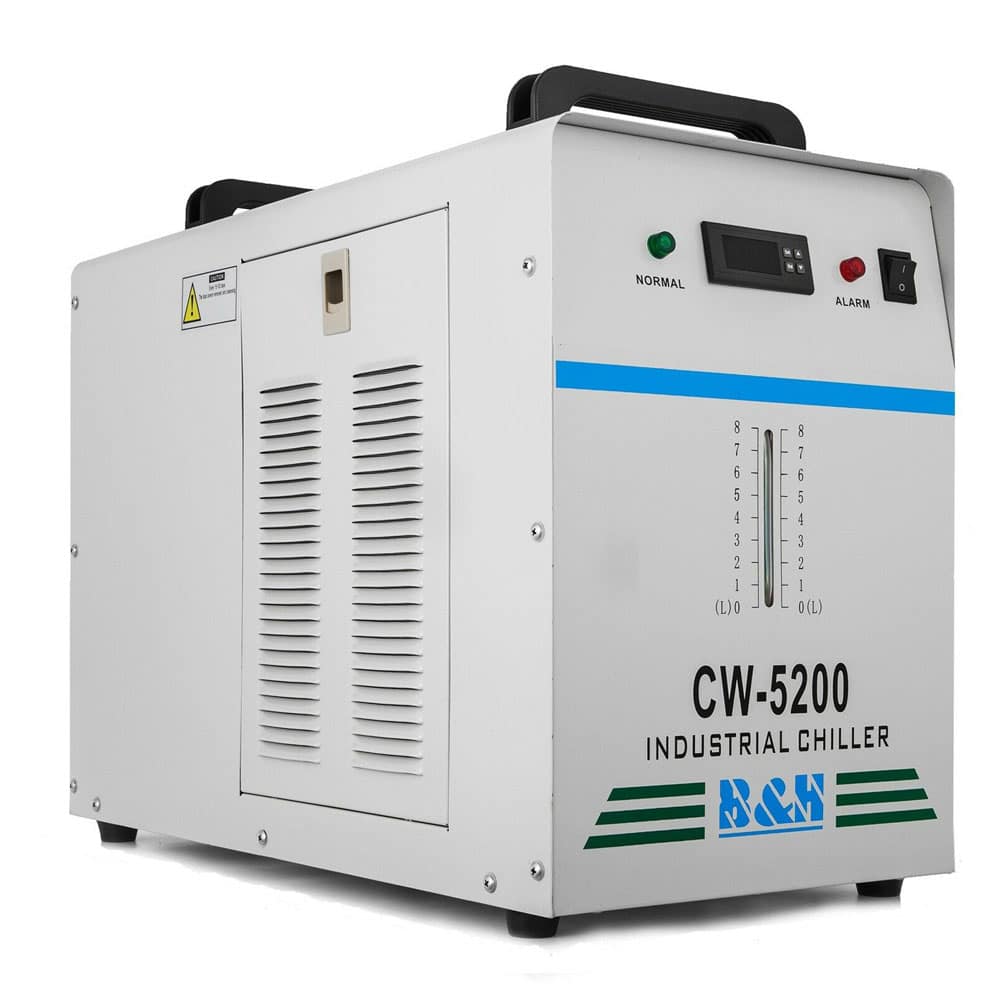

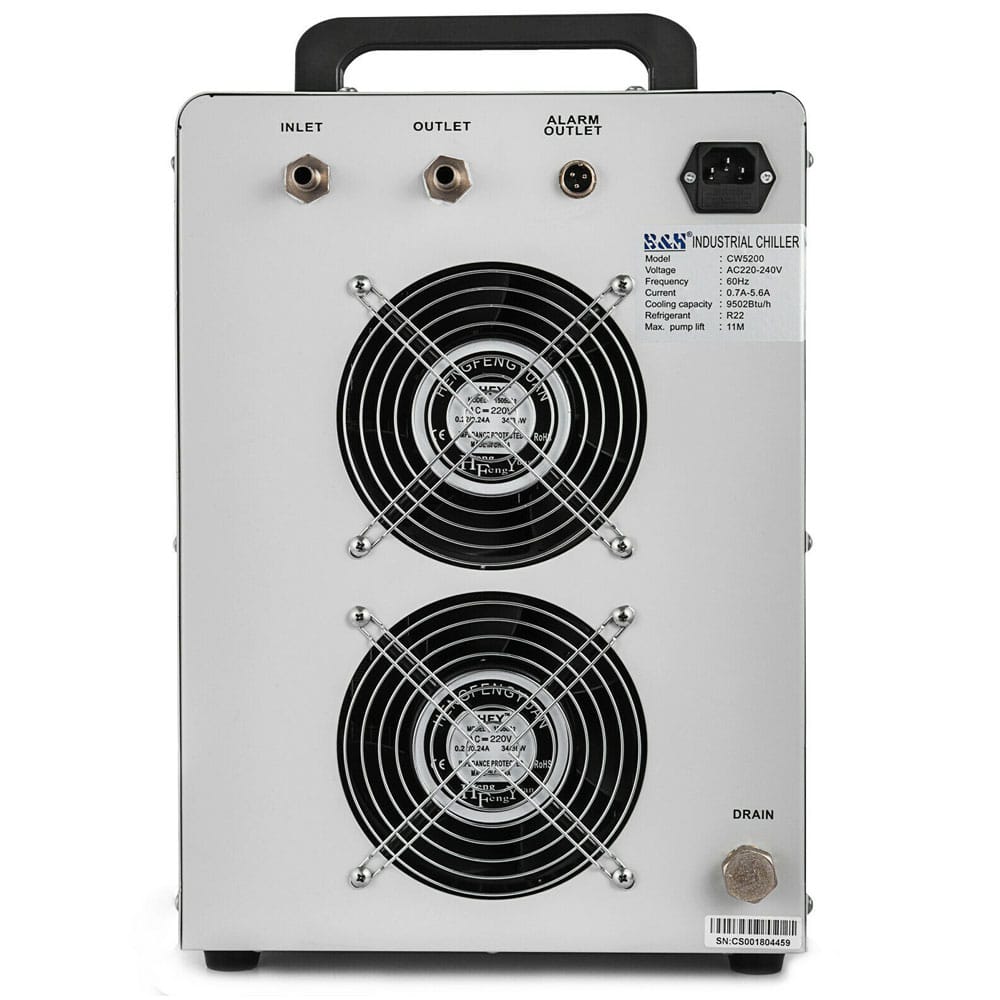

CW-5200 Industrial water cooler chiller



The CW-5200 series is a professional water cooler that was developed based on the international advanced pyrolysis cooling system. The machine is suitable for machines that are required for small water-cooled cooling devices. It has a 6 L cooling tank with full water flow and over-temperature alarm functions. The built-in fan for effective ventilation ensures effective ventilation and a high capacity of heat dissipation. It is designed to cool a CO2 glass laser tube to 130 W / 150 W in a laser engraving and cutting machine.

Double fans

A professional and air-cooled cooler inside quickly takes away the heat. A high capacity of heat dissipation means that the machine cannot be easily blocked.

Precise thermostat

This industrial water cooler for CNC machines has an accurate temperature controller. You can precisely set and monitor the real-time temperature to ensure the machine’s working status.

6L water tank For cooling

The machine provides stable performance with a 6 liter large capacity cool box. Equipped with a precision scale, you can fill with water according to the scale.

Specifications

     Model: CW-5200DG

     Voltage: 220 V.

     Frequency: 60 Hz

     Current: 4.5 ~ 6.5 A

     Tank capacity: 6 L

     Compressor output: 0.68 kW, 0.93 PS

     Cooling capacity: 5186 Btu / h, 1.52 kW, 1307 kcal / h

     Refrigerant: R-22 / R-134a / R-410a

     Refrigerant charge: 350 g

     Precision: ± 32.54 ℉ / 0.3 ℃

     Reducer: capillary

     Pump output: 0.03 kW

     Maximum flow: 10 l / min

     Maximum pumping stroke: 11 yards / 10M

     Inlet and outlet: External 10 mm plug made of brass

     Package dimensions: 28.3 * 17.3 * 24.4 inch / 720 * 440 * 620 mm (L * W * H)

     Protection: overcurrent protection for compressor, flow alarm, overtemperature alarm

Packing list

     1 × CW-5200DG water cooler

     1 × power cord

     2 x sealing washer

     1 × replacement fuse

     1 × user manual

     1 × alarm signal output connector
