3KW 6KW Raytools Cutting Head

The innovations and the technological development of laser optics or laser cutter heads have greatly contributed to the development and the improvement of laser cutting quality. Operator interventions in the laser cutting process are becoming less necessary, and the emphasis is placed on complete cutting automatization, which can be achieved through the latest innovations in this technology.

  • Zero focus scale recovery function to maintain accurate focus adjustment.
  • Integrated design and improved QBH fiber interface to prevent from stucking.
  • Dual-water cooling circuit to collimation lens and focus lens.
  • IP65 dustproof level with fully enclosed beam path to decrease contamination risk.

Details about 3KW 6KW Raytools Cutting Head

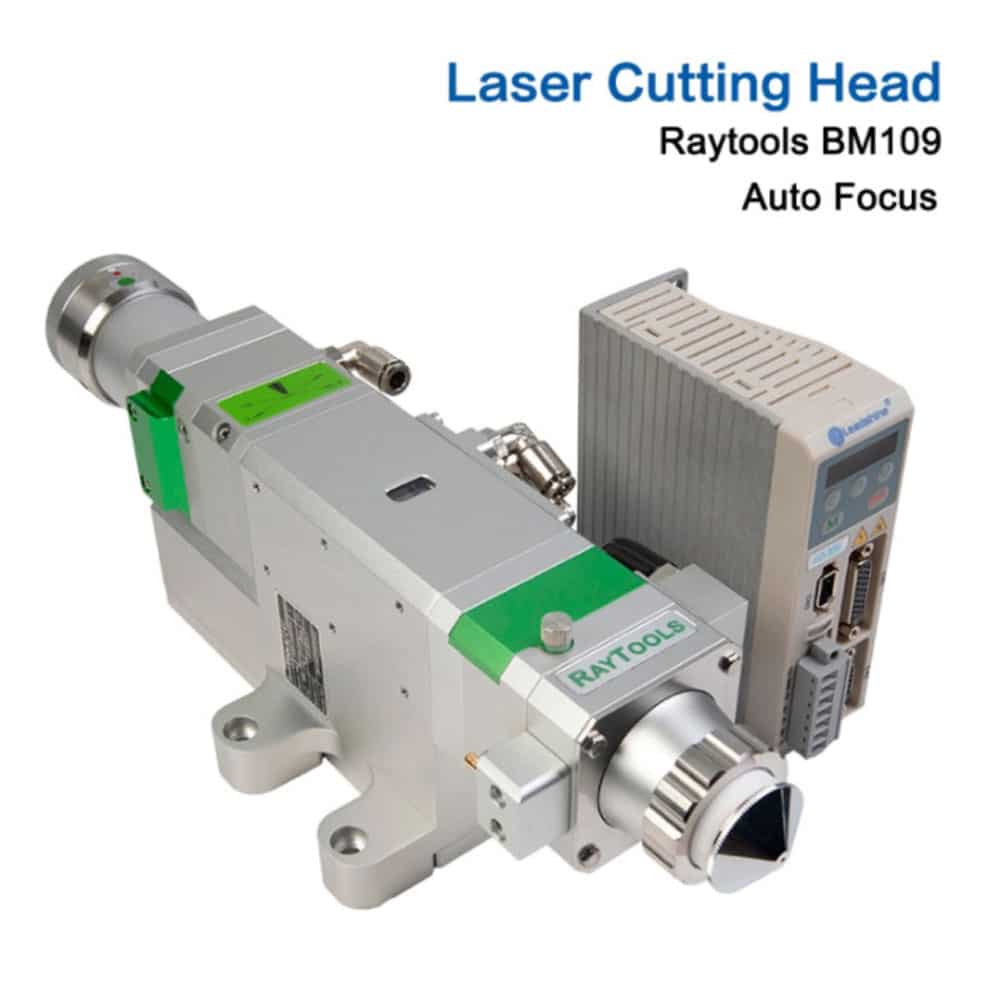

BM109 Auto Focus Laser Cutting Head

Power rating 1.5KW; Standard autofocus laser cutting



  • Fiber Interface:QBH
  • QD  Collimation Length :100mm
  • Clear Aperture: 26mm
  • Focus Length: 125mm,150mm
  • Auto Focus
  • Nozzle Styles :Single, Double
  • Range +8 ~ -9mm
  • Diameter of Nozzle Tip:  0.8mm, 1.0mm, 1.2mm, 1.5mm, 2.0mm, 2.5mm, 3.0mm, 3.5mm, 4.0mm, 4.5mm, 5.0mm
  • Acceleration :≤ 10m/s²
  • Velocity:≤ 6m/min
  • Accuracy: ≤ 50μm
  • Assist Gas Pressure ≤ 25 bar
  • Weight ~ 3 kg
  • Collimation Side (Top): Φ24.9*1.5mm
  • Focusing Side (Bottom/Middle): Φ27.9*4.1mm

raytools bm109

raytools bm109

raytools bm109

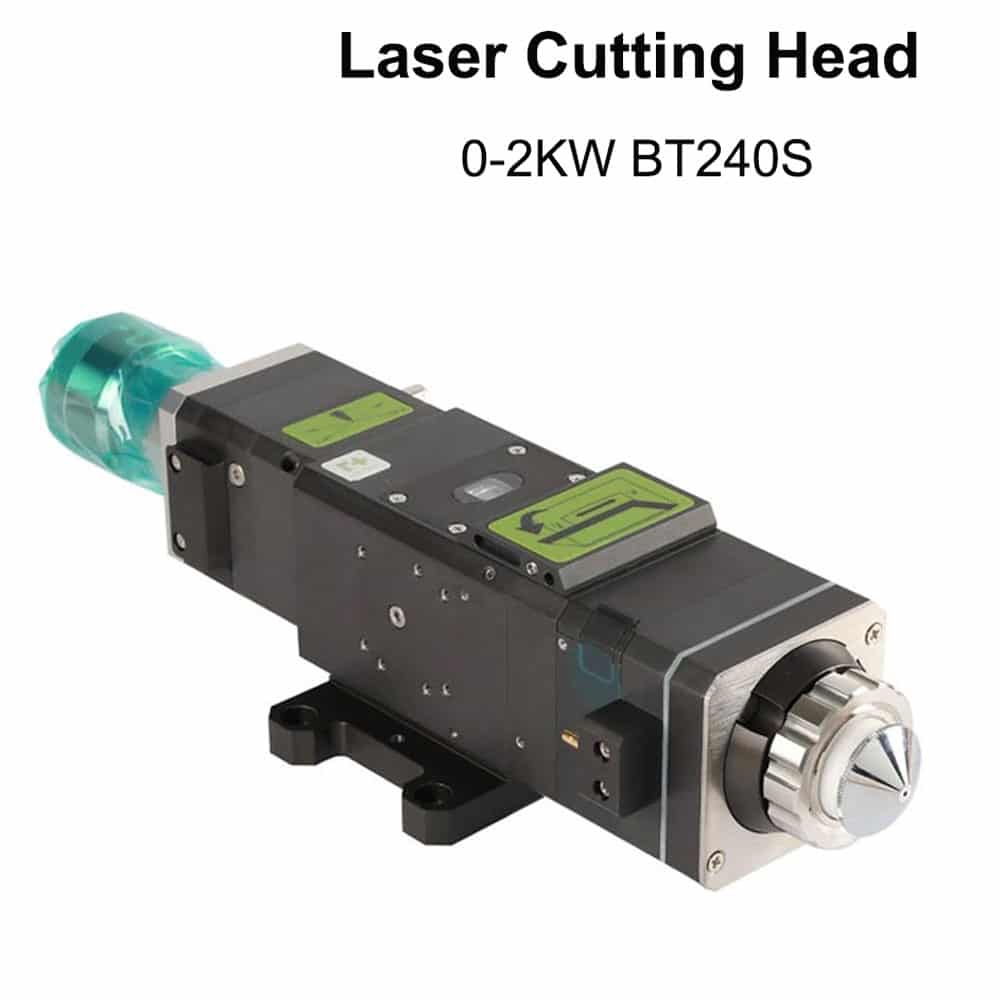

Raytools BT240S 0-3.3kw Fiber Laser Cutting Head

Features

  • Optimized optical configuration, smooth and efficient airflow design.2. Comprehensive upgrade of the dust-proof design, double protection, and no contamination of the lens.
  • The laser head body is increased anti-collision function.
  • Turntable focus adjustment, manually corrected, flexible adjustment. Adjustable range is 20mm (±0. 05mm).
  • A variety of optical interfaces, suitable for many kinds of fiber lasers.

Raytools-BT240S BT240S Raytools-BT240S BT240S

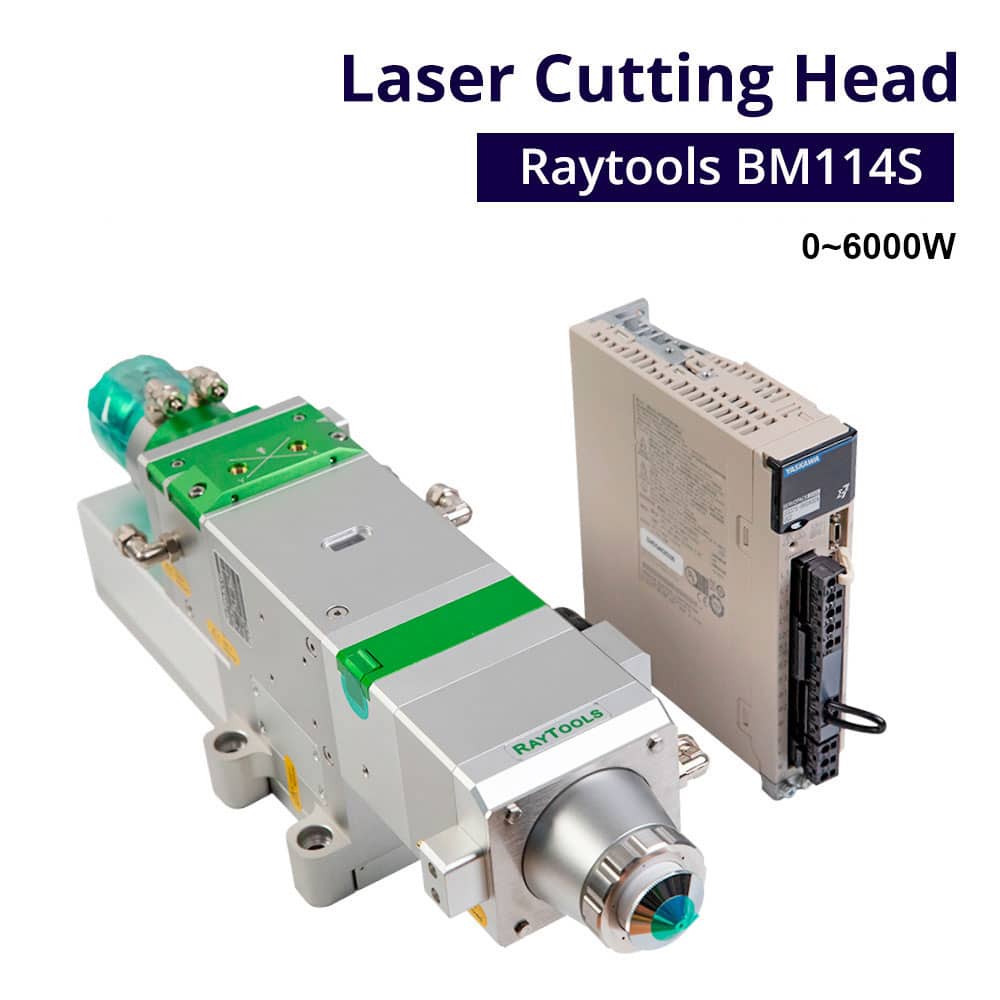

BM114S Auto Focus Laser Cutting Head

Power rating 6KW; Standard autofocus laser cutting



  • Rated to 6kW @ 1um, with D37 lens combo for thick plate cutting.
  • Collimation and focusing lenses are both water-cooled.
  • Compact design to reduce the payload of Z-axis.
  • Air cooling to nozzle effectively protects the nozzle & ceramic part and extends the lifespan.
  • 35mm Clear aperture which effectively reduces stray beam interference and guarantees cutting quality and lifespan.
  • Auto focus to reduce human intervention.



  • Fiber Interface :QBH ,QD
  • Collimation Length :100mm
  • Clear Aperture :35mm
  • Focusing Length :150mm , 200mm
  • Auto Focus
  • Nozzle Styles: Single , Double , Custom
  • Range :+15 ~ -20mm
  • Diameter of Nozzle Tip:0.8mm, 1.0mm, 1.2mm, 1.5mm, 2.0mm, 2.5mm, 3.0mm, 3.5mm, 4.0mm, 4.5mm, 5.0mm
  • Acceleration: ≤10m/s²
  • Velocity: ≤10m/min
  • Accuracy:≤ 50μm
  • Assist Gas Pressure: ≤ 30 bar
  • Collimation Side (Top): Φ38.1*1.6mm
  • Focusing Side (Bottom) :Φ37*7mm

raytools bm114raytools bm114 raytools bm114

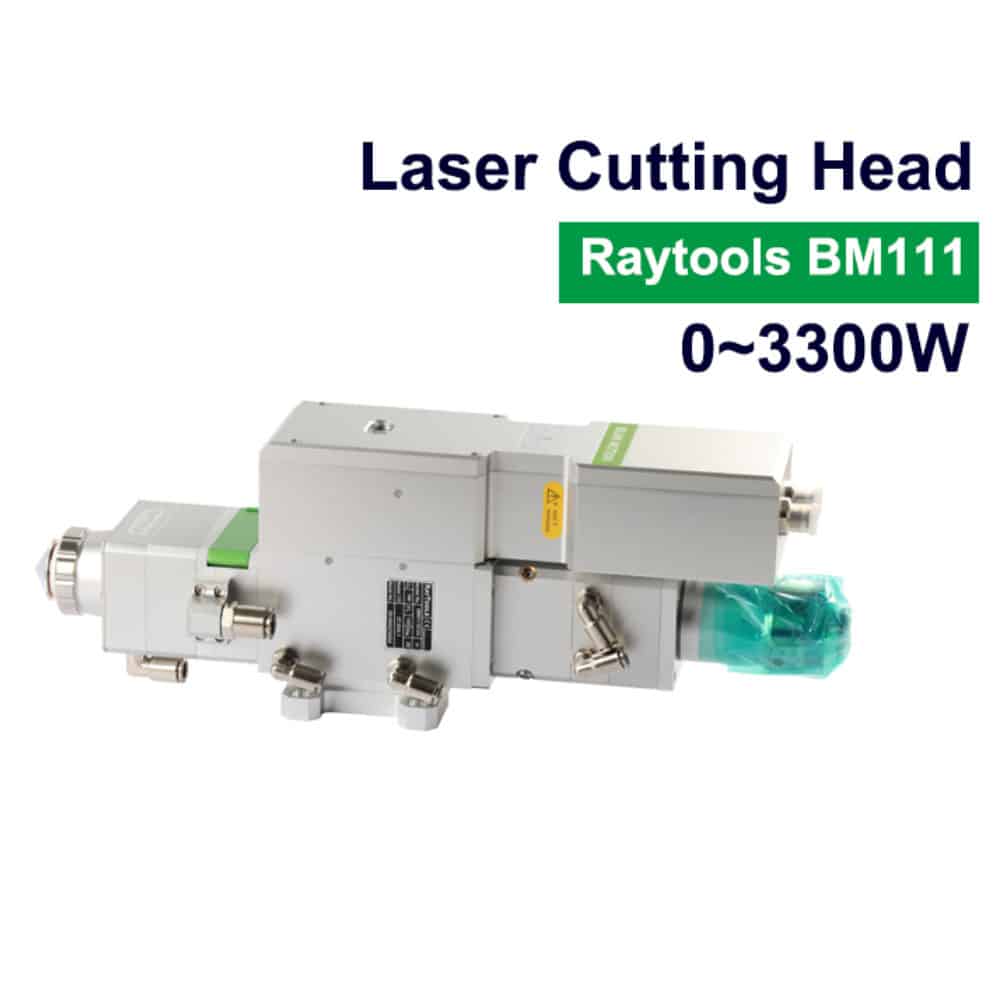

BM111 Auto Focus Laser Cutting Head

Power rating 3.3KW; Standard autofocus laser cutting.

  • Modular design with easy maintenance.
  • Dual water cooling circuits.
  • Autofocus to reduce human intervention and improve piercing and cutting efficiency.
  • 3 Cover glasses (top, middle and bottom) to protect collimation & focus lens.
  • IP65 class dustproof patented cover glass cover plate. All-around dust prevention.



  • Fiber Interface :QBH , QD
  • Collimation Length :100mm
  • Clear Aperture :28 mm
  • Focusing Length :125mm , 155mm , 200mm
  • Auto Focus
  • Nozzle Styles: Single , Double , Custom
  • Range :+10 ~ -12 mm
  • Diameter of Nozzle Tip:0.8mm, 1.0mm, 1.2mm, 1.5mm, 2.0mm, 2.5mm, 3.0mm, 3.5mm, 4.0mm, 4.5mm, 5.0mm
  • Acceleration :≤10 m/s²
  • Velocity :≤10 m/min
  • Accuracy: ≤ 50μm
  • Assist Gas Pressure: ≤ 30 bar
  • Collimation Side (top): Φ24.9* 1.5mm
  • Focusing Side (Middle / Bottom) :Φ27.9* 4.1mm

RAYTOOLS BM111RAYTOOLS BM111 RAYTOOLS BM111 RAYTOOLS BM111
