Precitec/Raytools/WSX Focusing/Collimating Lenses for 3kw 6kw 10kw Fiber cutting machine
The collimating lens captures the highly divergent output from the optical fiber and creates a parallel (collimated) beam with reduced divergence enabling moderate propagation distances.
Collimating lenses, as well as focusing lenses present in fiber laser cutting heads, are very sensitive to any type of contamination. For this reason, the majority of fiber laser systems employ protective windows to protect the focusing lens against contamination. Collimating lenses, as well as focusing lenses present in fiber laser cutting heads, are very sensitive to any type of contamination. For this reason, the majority of fiber laser systems employ protective windows to protect the focusing lens against contamination. The protective window is positioned in front of the focusing lens and serves as a barrier between the lens and the metal sheet.
Details about Precitec/Raytools/WSX Focusing/Collimating Lenses for 3kw 6kw 10kw Fiber cutting machine
The collimating lenses is an important part of the laser cutting head. Our OEM Collimating lenses have been strictly tested, and we have a professional maintenance team engaged in maintenance and upgrade services in the domestic market and have accumulated valuable first-hand experience in the process of practice. If you have any questions, please feel free to contact us. The following are general model parameters for your reference:
Raytools Focusing & Collimating Lens
| Model number | Diameter | Focal length | Surface accuracy |
| BM109 D28-100/120AH0600A | 28mm | 100mm | PO/CX |
| BM109 D28-125/120AH0700A | 28mm | 125mm | PO/CX |
| BM109 D28-150 | 28mm | 150mm | PO/CX |
| BM110 D30-100/120AG0600A | 30mm | 100mm | PO/CX |
| BM110 D30-150 | 30mm | 150mm | PO/CX |
| BM110 D30-200 | 30mm | 200mm | PO/CX |

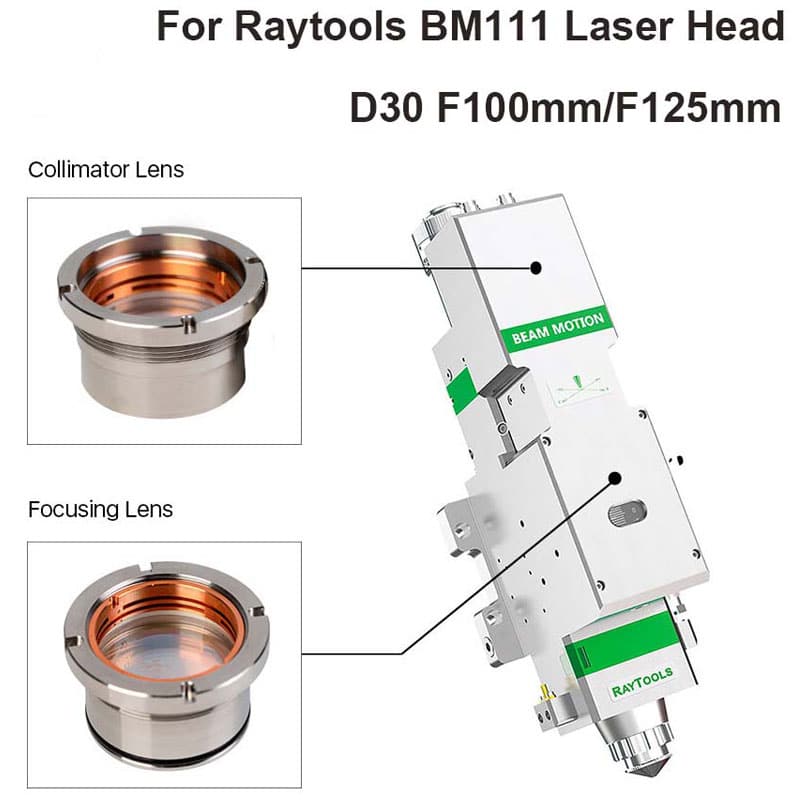

| BM111 D30-100 | 30mm | 100mm | PO/CX |
| BM111 D30-125/120AG0600A | 30mm | 125mm | PO/CX |
| BM111 D30-150 | 30mm | 150mm | PO/CX |
| BM111 D30-155/120AG0800A | 30mm | 155mm | PO/CX |
| BM111 D30-200 | 30mm | 200mm | PO/CX |

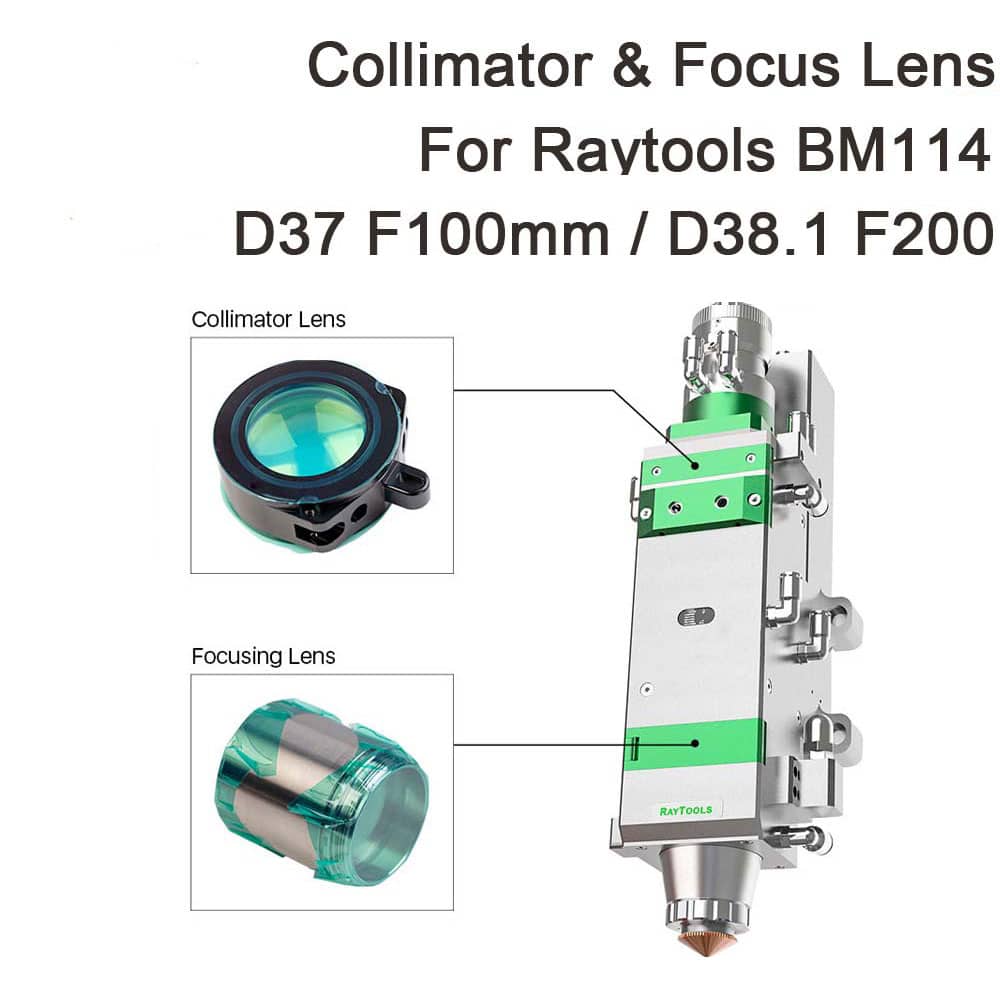

| BM114 D37-100/120A32700A | 37mm | 100mm | Bi-convex |
| BM114 D37-150/120A30700A | 37mm | 150mm | Bi-convex |

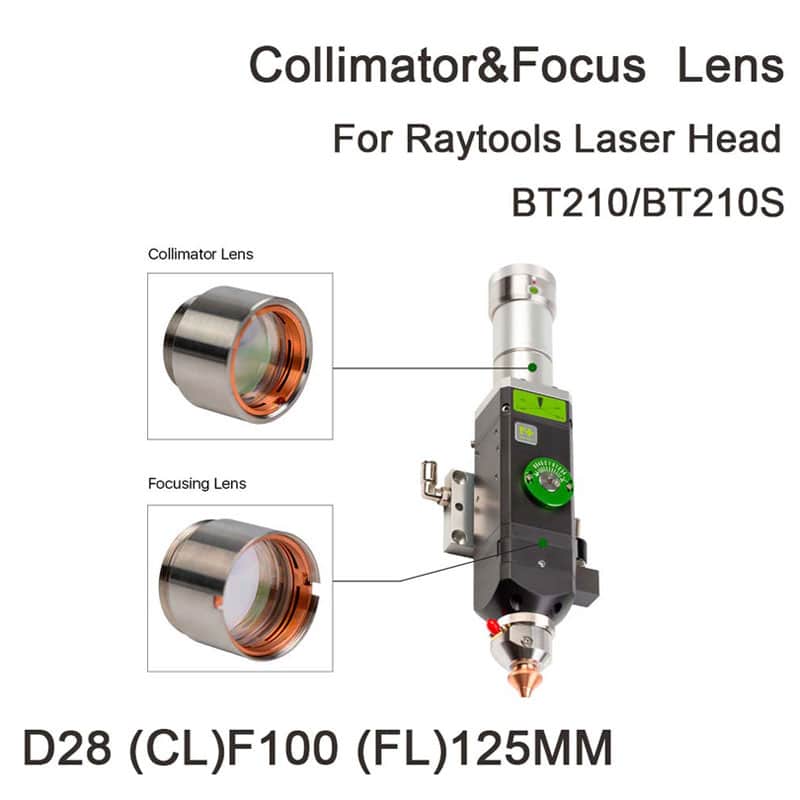

| BT210 D28-75 | 28mm | 75mm | Bi-convex |
| BT210 D28-100 | 28mm | 100mm | Bi-convex |
| BT230 D28-125 | 28mm | 125mm | Bi-convex |

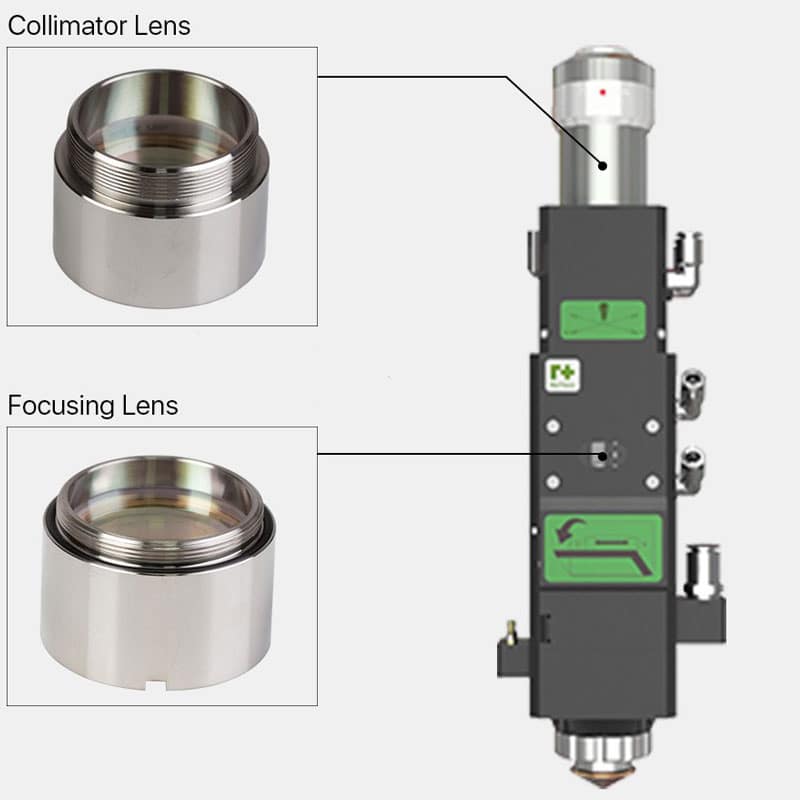

| BT240S D30-100 | 30mm | 100mm | Bi-convex |
| BT240S D30-125 | 30mm | 125mm | Bi-convex |
| BT240S D30-150 | 30mm | 150mm | Bi-convex |
WSX Focusing & Collimating Lens
| Model number | Diameter | Focal length | Surface accuracy |
| WSX D30-75 | 30mm | 75mm | Bi-convex |
| WSX D30-100 | 30mm | 100mm | Bi-convex |
| WSX D30-125 | 30mm | 125mm | Bi-convex |
| WSX D30-150 | 30mm | 150mm | Bi-convex |
| WSX D37-100 | 37mm | 100mm | Bi-convex |
| WSX D37-150 | 37mm | 150mm | Bi-convex |
Precitec Focusing & Collimating Lens
Suitable for Procutter2.0, Precitec HPSSL Laser Cutting Head
| Model number | Diameter | Focal length | Surface accuracy |
| Pre-D30-100 | 30mm | 100mm | Meniscus |

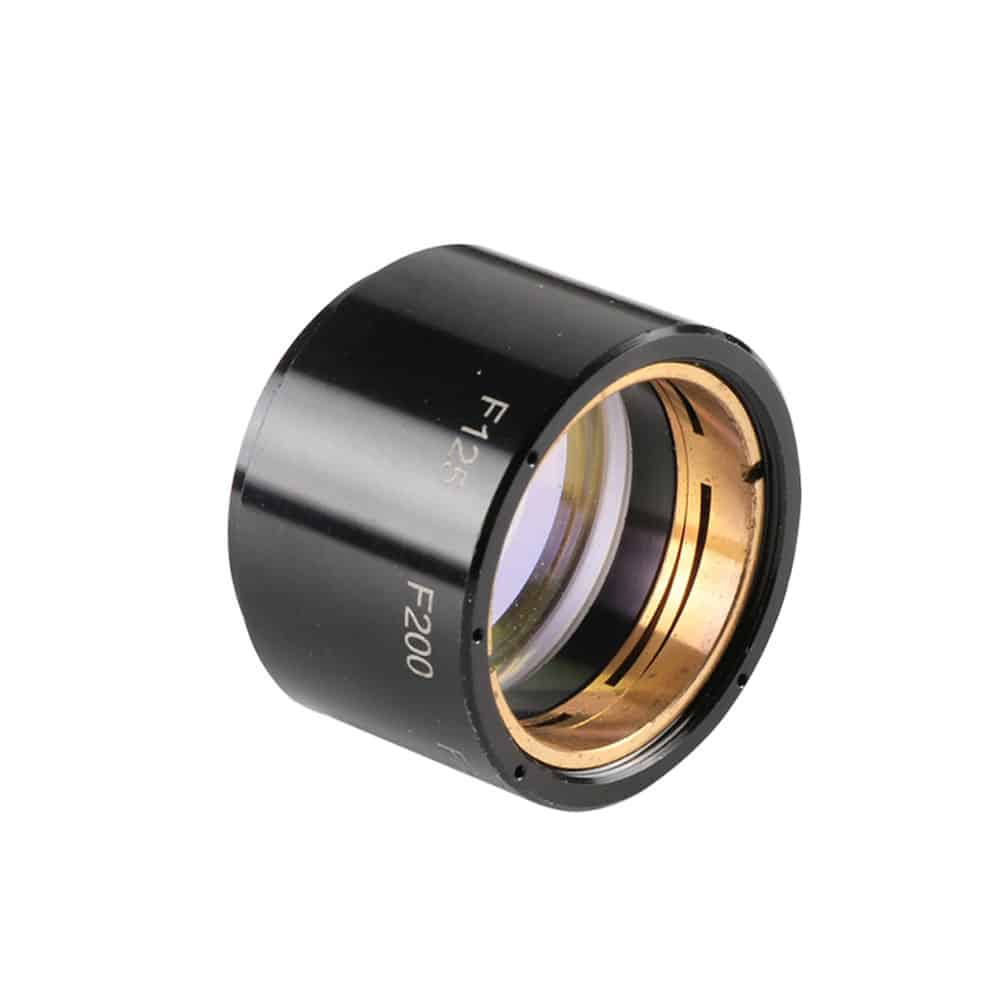

| Pre-D30-125/P0591-1262-00001 | 30mm | 125mm | Meniscus |
| Pre-D30-200 | 30mm | 200mm | Meniscus |
| Pre-D37-100 | 37mm | 100mm | Meniscus |
| Pre-D37-125 | 37mm | 125mm | Meniscus |
| Pre-D37-150 | 37mm | 150mm | Meniscus |
| Pre-D37-200 | 37mm | 200mm | Meniscus |
