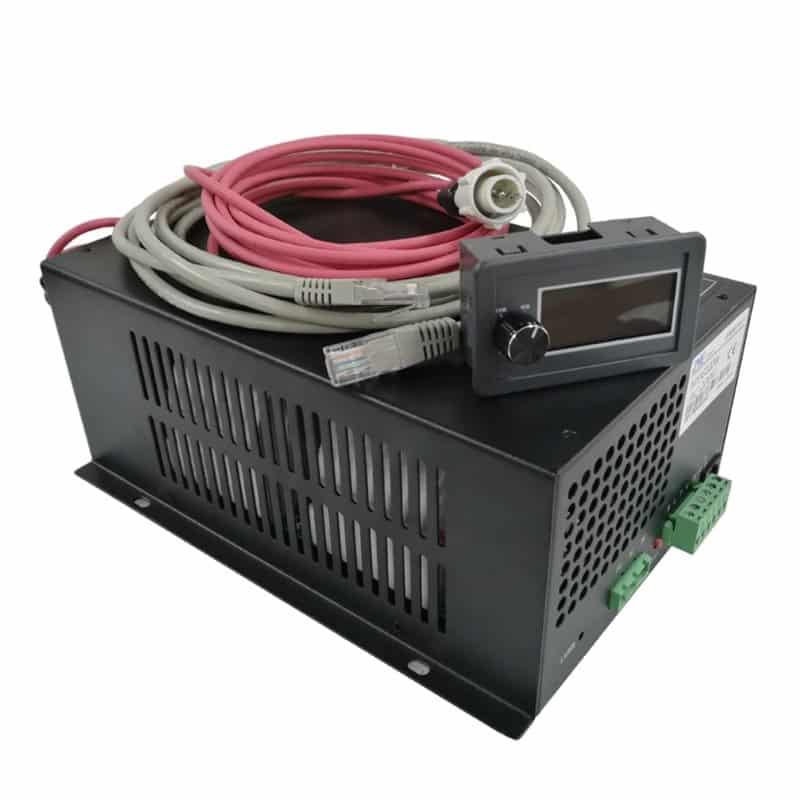

Co2 laser power supply
Advantages:
1. Easy Control: The start and stop of the laser can be easily controlled by a TTL level. either 0 ~ 3.3v analog signals or PWM control signal can control the laser power.
2. The Laser Power Supply has output open circuit protection.
3. This Laser power supply has TTL signal indication, water through signal indication, and laser output indication. 4. The power has a feedback interface, can be used for closed-loop control, also can be used for testing the laser tube working current. We have 40W,60W..80W.100W,130W,150W laser power supply for you choose.
Details about Co2 laser power supply
Features :
Wide Input Range: it equals to put a voltage regulator and stabilizer in the power supply, which can be used under different input voltages in different countries or outputs stable current under unstable input voltage.
Short Circuit Protection: when positive and negative poles short~circuits, the power supply will cut off the circuit automatically for protection.
Open Circuit Protection: when positive and negative poles open~circuits, the power supply will cut off the circuit automatically for protection.
Input Enable Signal Detection: show the electrical signal from the machine’s control board
Temperature/Humidity Detection: self~protection starts when temperature or humidity is over permit value to ensure the safety of laser operation
Working Status Detection: monitor electrical signal from the laser tube in time and analyze its working status
Malfunction analysis: analyze disorders by machines/ laser tubes and show that information on the screen in different languages
NOTICE: Please deal with the malfunction according to the given solutions showing on the screen firstly. The power supply can be used again only if it is powered off and restarted.
Parameters Chart:
HY Series Laser Power Supply:
| Model | Input Voltage | Power | Max Output Voltage | Max Output Current |
| T50-110V
T50-220V |
AC110V
AC220V |
50W | DC25KV | DC20mA |
| T60-110V
T60-220V |
AC110V
AC220V |
60W | DC35KV | DC24mA |
| T80-110V
T80-220V |
AC110V
AC220V |
80W | DC40KV | DC28mA |
| T150-110V
T150-220V |
AC110V
AC220V |
150W | DC50KV | DC38mA |
W Series Laser Power Supply:
| Model | Input Voltage | Power | Max Output Voltage | Max Output Current |
| W120 | AC90V-AC250V | 100-120W | DC40KV | DC35mA |
| W150 | AC90V-AC250V | 150W-180W | DC50KV | DC38mA |
HY-Z Series Laser Power Supply:
| Model | Input Voltage | Power | Max Output Voltage | Max Output Current |
| Z80 power supply | AC90V-AC250V | 80-100W | DC40KV | DC28mA |
| Z100 power supply | AC90V-AC250V | 100-120W | DC45KV | DCm32A |
| Z150 power supply | AC90V-AC250V | 150-180W | DC55KV | DC38mA |

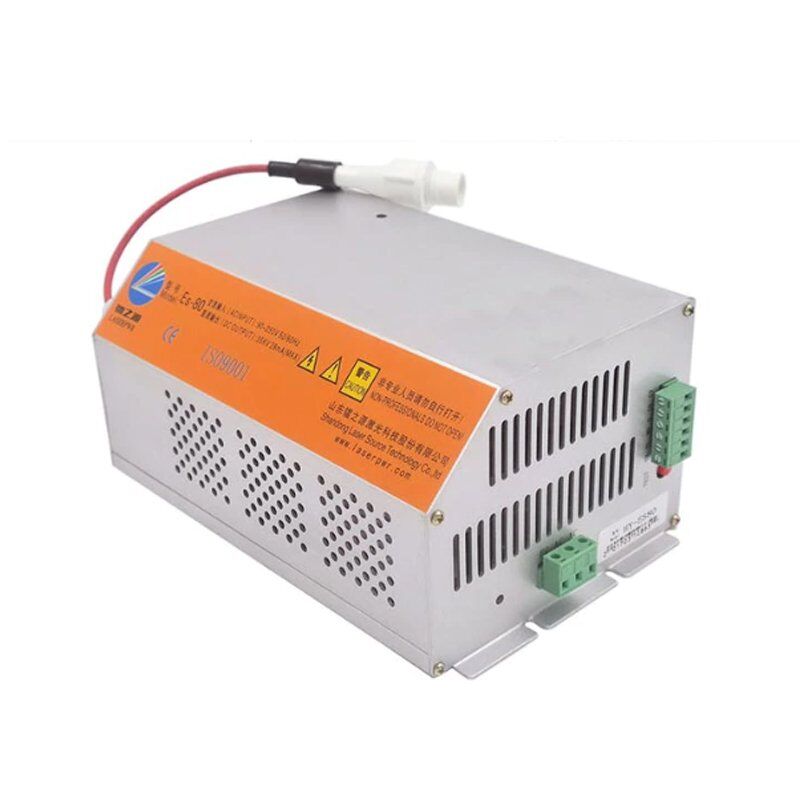

HY-ES Series Laser Power Supply:
| Model | Input Voltage | Power | Max Output Voltage | Max Output Current |
| ES80 power supply | AC90V-AC250V | 80-100W | DC40KV | DC28mA |
| ES100 power supply | AC90V-AC250V | 100-120W | DC45KV | DCm32A |
| ES150 power supply | AC90V-AC250V | 150-180W | DC55KV | DC38mA |
HY-DY Series Laser Power Supply:
| Model | Input Voltage | Power | Max Output Voltage | Max Output Current |
| DY10-110V
DY10-220V |
AC110V
AC220V |
80W | DC35KV | DC23mA |
| DY13-110V
DY13-220V |
AC110V
AC220V |
100W | DC40KV | DC28mA |
| DY20-110V
D2Y0-220V |
AC110V
AC220V |
150W | DC50KV | DC35mA |
HY-C yueming Series Laser Power Supply:
| Model | Input Voltage | Power | Max Output Voltage | Max Output Current |
| C80-110V
C80-220V |
AC90V-AC250V | 80W | DC40KV | DC28mA |
| C150-110V
C150-220V |
AC90V-AC250V | 150W | DC05KV | DC38mA |
MYJG Series Laser Power Supply:
| Model | Input Voltage | Power | Max Output Voltage | Max Output Current |
| MYJG-40NG | AC110V
AC220V |
35-50W | DC23KV | DC20mA |
| MYJG-50G | AC110V
AC220V |
50W | DC22KV | DC22mA |
| MYJG-60W | AC110V
AC220V |
60W | DC24KV | DC25mA |
| MYJG-80W | AC110V
AC220V |
80W | DC26KV | DC28mA |
| MYJG-100W | AC110V
AC220V |
100W | DC28KV | DC30mA |
| MYJG-130W | AC110V
AC220V |
130W | DC30KV | DC3mA |
| MYJG-150W | AC110V
AC220V |
150W | DC34KV | DC38mA |
