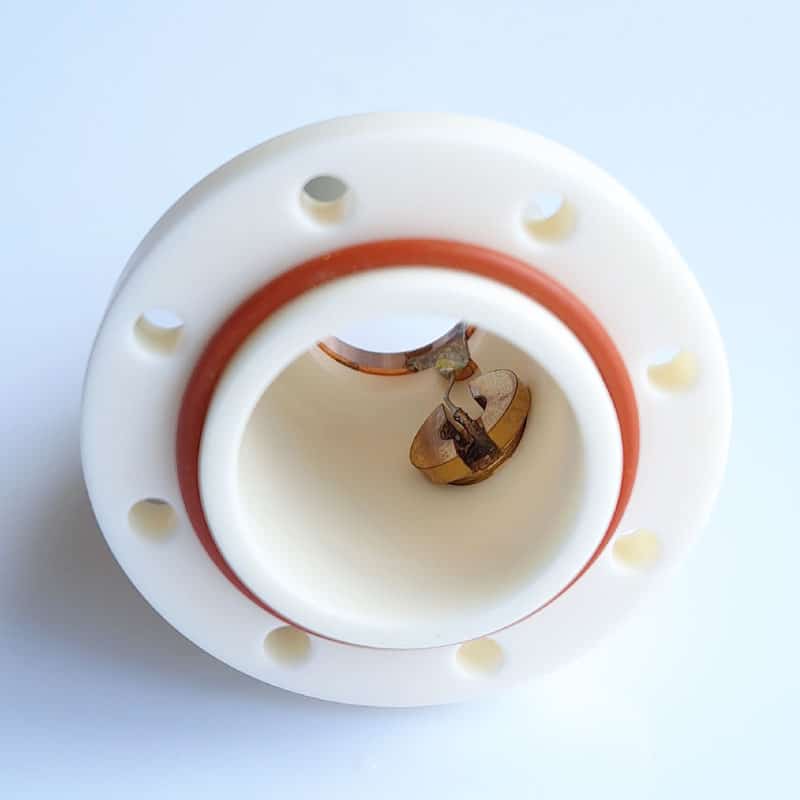

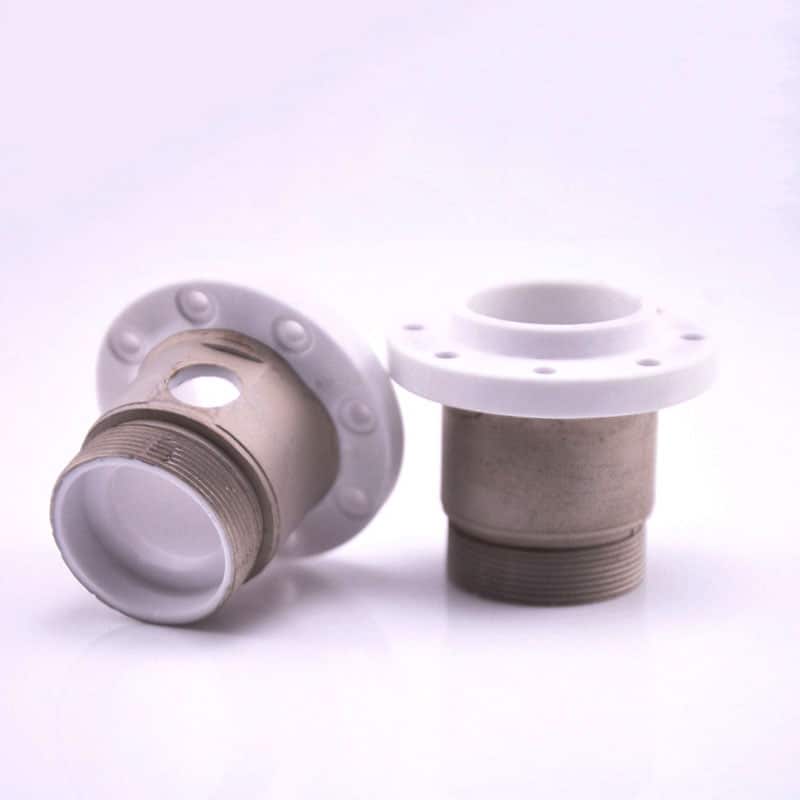

Laser Ceramic Ring Nozzle Holder Substitute for NTC 3R016928-G01 Laser Cutting head

$20.00$80.00

1 NT426-0515 4R018705-001 NT-Nozzle, 1.5 mm (standard), ceramic 1
NT426-0520 4R018705-002 NT-Nozzle, 2.0 mm (standard), ceramic 1
2 NT426-3962 4R003962-001 NT-Nozzle cap, standard 1
3 NT426-6515 4R008865-002 NT-Nozzle, 1.5 mm (small), ceramic 1
NT426-6520 4R008865-001 NT-Nozzle, 2.0 mm (small), ceramic 1
4 NT426-8866 4R008866-001 NT- Nozzle cap, small 1
5 NT426-8415 4R018452-001 NT-Flange (new style) 0.15″ 1
NT426-8430 4R018452-002 NT-Flange (new style) 0.30″ 1
NT426-8450 4R032035-001 NT-Flange (new style) 0.50″ 1
6 NT426-9711 4R019711-001 NT-Flange (old style) 0.10″ 1
NT426-4446 4R004446-001 NT-Flange (old style) 0.15″ 1
NT426-6511 4R006511-001 NT-Flange (old style) 0.30″ 1
NT426-0487 4R010487-001 NT-Flange (2D) 0.50″ 1
NT426-2632 3R002632-G03 NT-Nozzle holder (old style), ceramic 1

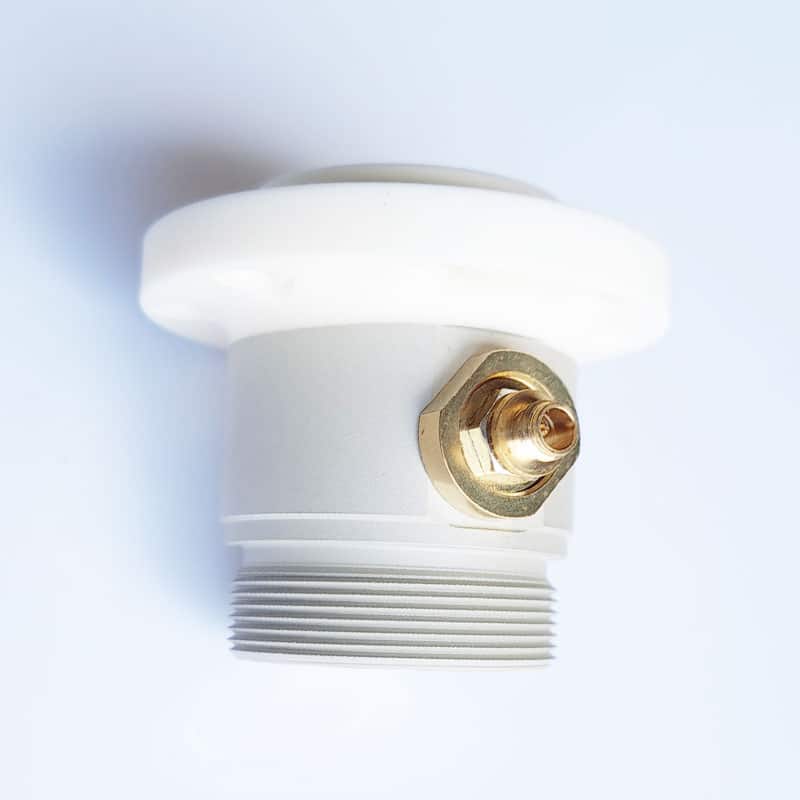

NT426-6928 3R016928-G01 NT-Nozzle holder (new style), ceramic 1
7 NT426-7758 4R037758-001 NT-Nozzle base 1
NT426-0001 N-G O-RINGS NT-O-Rings for nozzle holder 1
NT426-3765 4R003765-001 NT-Nozzle nut 1
8 NT426-3540 4R003540-001 NT-Stylus 1
9 NT426-2720 4R012720-001 NT-Stylus adapter 1
NT426-1682 4R029911-001 AL624 NT-Sensor cable, 216 mm (8.5″) 1
NT426-8677 4R028677-001 AL627 NT-Sensor cable, 508 mm (20″) armored 1
NT426-4991 3-0104991 AL625 NT-Sensor cable, 0-0BNC/MCX, 482 mm (19″) 1
NT426-7492 3-0117492 AL626 NT-Sensor cable, 90BNC/90BNC, 482 mm (19″)

Fiber laser ceramic holder

We can supply for Bystronic, Trumpf, Prima, LVD, AMADA, Mitsubishi, Mazak, NTC, unity Prima, Hans, Farley Laser Lab, HighYag, and so on.

Suitable for TruLaser Series 1000, TruLaser Series 2000/3000 , TruLaser Series 5000, TruLaser Series 7000 Fiber, TruLaser Series 7000/8000 square cutting head, traumatic Series 3000 Fiber, TruMatic Series 3000/6000

ProCutter 2.0 and ProCutter Zoom 2.0,ProCutter 1.0; LightCutter; MiniCutter; HPxx; DS; SpeedCutter and M1.5” KN

Trumpf nozzles

Parameters Chart:

Ceramic Holder/Ring

Precitec:

Picture Model Height Thread
priecitec nozzles 3D P0491-130-00001 10mm M5
OEM P0571-1051-00001 11.7mm M11
priecitec-ceramic ring OEM P0571-260-00001 11.7mm M11
precitec-ceramic OEM P0571-1051-00001 Golden 11.7mm M11

Raytools:



Picture Model Height Thread
raytools OEM 120274100B 12mm M14

Bystronic:



Picture Model Thickness Diameter
bystronic ring 04-09010 6.5mm 28mm
bystronic-3828 10032838 11.5mm 26mm
bystronic-1642 4-01642 4mm 25.9mm
bystronic-ring 4-01959 10.9mm 26mm
bystronic-13422 3-13422 15mm 34mm
bystronic-13113 3-13113 32mm 5.5mm

Trumpf:



Picture Model Thickness Diameter
trumpf-ceramic-holder 0936678-913966 17.6mm 17.6mm
trumpf-ceramic-holder 254493-260432 32mm 31.8mm
trumpf-ceramic-holder 1755673  33.5mm 41mm
trumpf-ceramic-holder 1906032 33.5mm 41mm

Nukon/Highyag:



Picture Model Thickness Diameter
  nukon ring-pro Pro 22.5mm 24.5mm
nukon-ring Rex/NF 16.4mm 35mm
nukon ring 10046025 4.0mm 35mm



IPG:



Picture Thread Height Diameter
ipg-ceramic-ring M11 10.5mm 28.7mm
