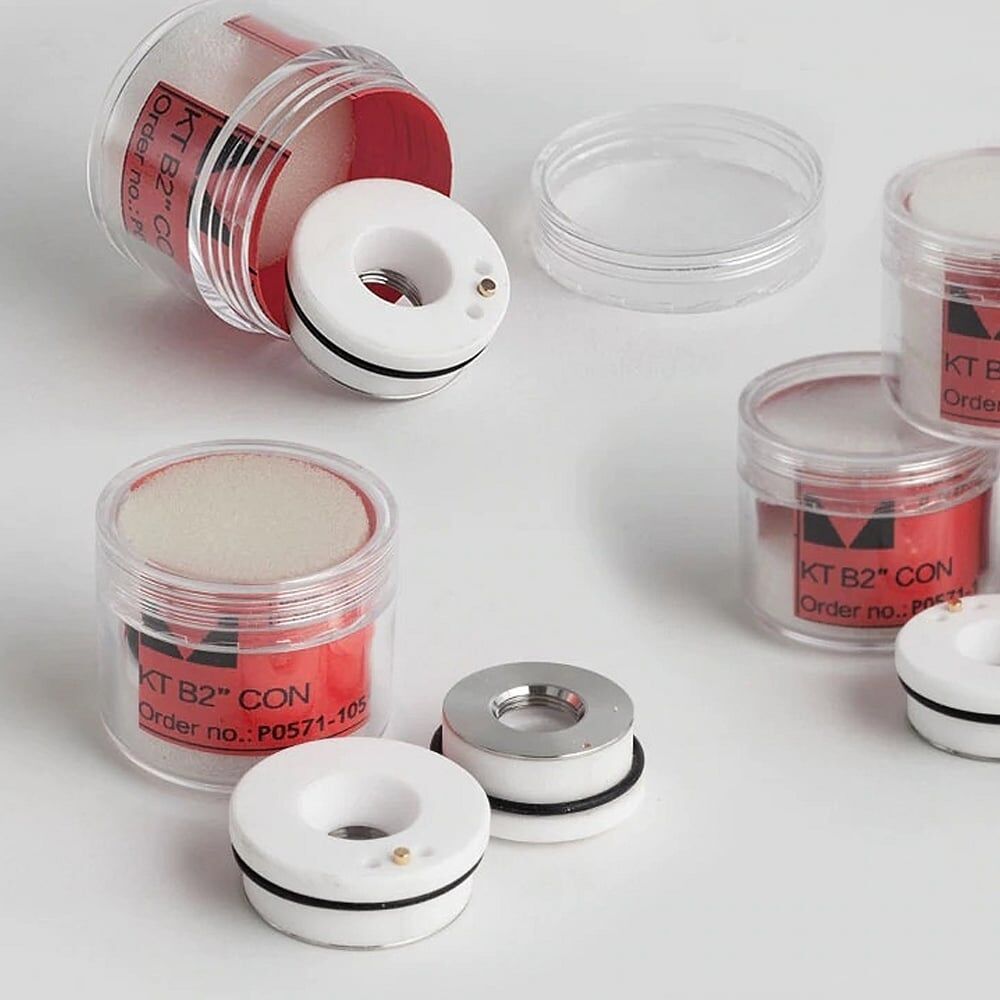

Ceramic part KT B2'' P0571-1051-00001
Product characteristics
Ceramic part :P0571-1051-00001 compatible with ProCutter 1.0; LightCutter; MiniCutter; HPxx; DS; SpeedCutter; B2″
High-Quality Ceramic, Effective Insulation
High-Quality Alloy, Good Conductivity
Long Life, Durable to Use
Details about Ceramic part KT B2'' P0571-1051-00001
Fiber laser ceramic holder
We can supply for Bystronic, Trumpf, Prima, LVD, AMADA, Mitsubishi, Mazak, NTC, unity Prima, Hans, Farley Laser Lab, HighYag, and so on.
Suitable for TruLaser Series 1000, TruLaser Series 2000/3000 , TruLaser Series 5000, TruLaser Series 7000 Fiber, TruLaser Series 7000/8000 square cutting head, traumatic Series 3000 Fiber, TruMatic Series 3000/6000
ProCutter 2.0 and ProCutter Zoom 2.0,ProCutter 1.0; LightCutter; MiniCutter; HPxx; DS; SpeedCutter and M1.5” KN
Parameters Chart:
Ceramic Holder/Ring
Precitec:
Picture | Model | Height | Thread |
![]() |
3D P0491-130-00001 | 10mm | M5 |
![]() |
OEM P0571-1051-00001 | 11.7mm | M11 |
![]() |
OEM P0571-260-00001 | 11.7mm | M11 |
![]() |
OEM P0571-1051-00001 Golden | 11.7mm | M11 |
Raytools:
Picture | Model | Height | Thread |
![]() |
OEM 120274100B | 12mm | M14 |
Bystronic:
Picture | Model | Thickness | Diameter |
![]() |
04-09010 | 6.5mm | 28mm |
![]() |
10032838 | 11.5mm | 26mm |
![]() |
4-01642 | 4mm | 25.9mm |
![]() |
4-01959 | 10.9mm | 26mm |
![]() |
3-13422 | 15mm | 34mm |
![]() |
3-13113 | 32mm | 5.5mm |
Trumpf:
Picture | Model | Thickness | Diameter |
![]() |
0936678-913966 | 17.6mm | 17.6mm |
![]() |
254493-260432 | 32mm | 31.8mm |
![]() |
1755673 | 33.5mm | 41mm |
![]() |
1906032 | 33.5mm | 41mm |
Nukon/Highyag:
Picture | Model | Thickness | Diameter |
![]() |
Pro | 22.5mm | 24.5mm |
![]() |
Rex/NF | 16.4mm | 35mm |
![]() |
10046025 | 4.0mm | 35mm |
IPG:
Picture | Thread | Height | Diameter |
![]() |
M11 | 10.5mm | 28.7mm |
