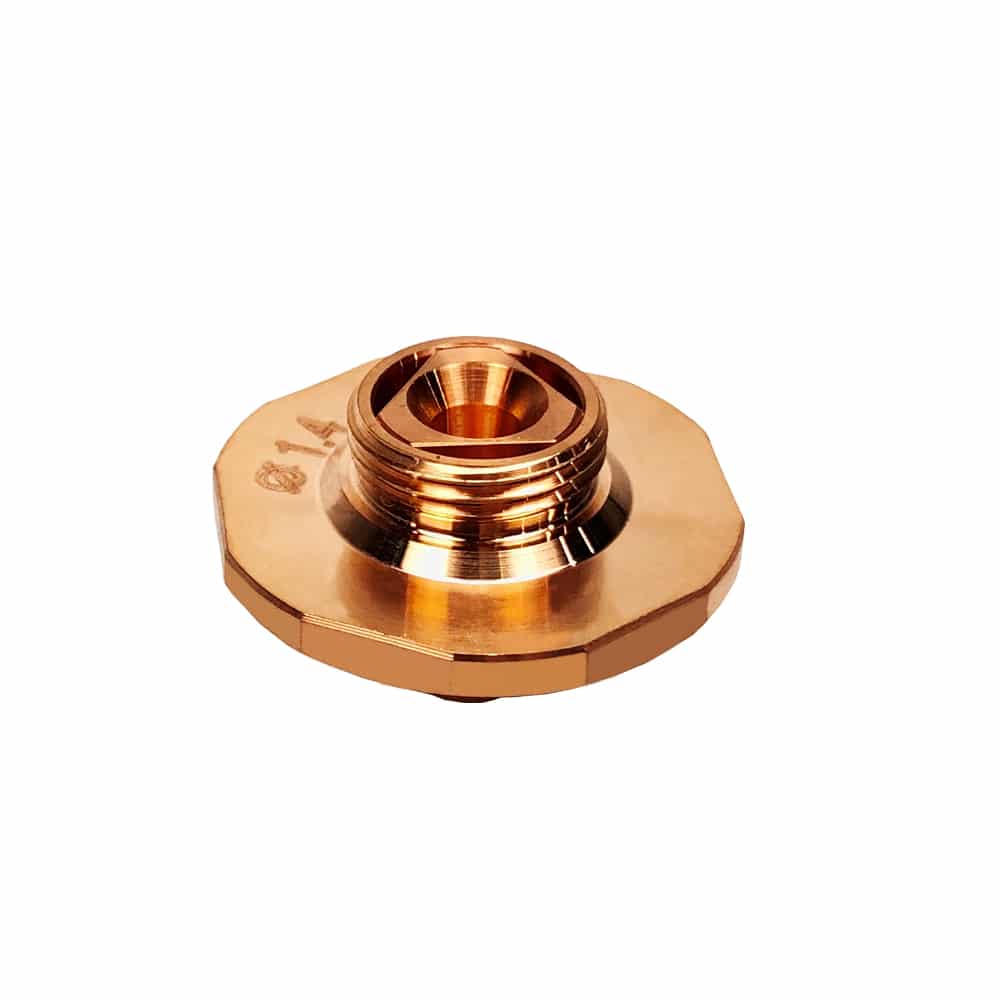

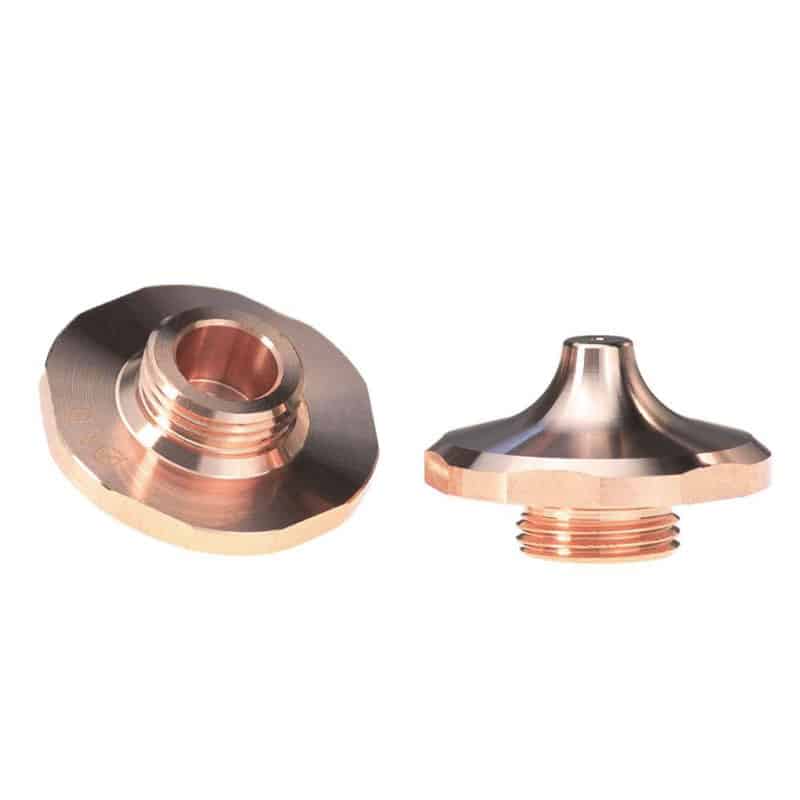

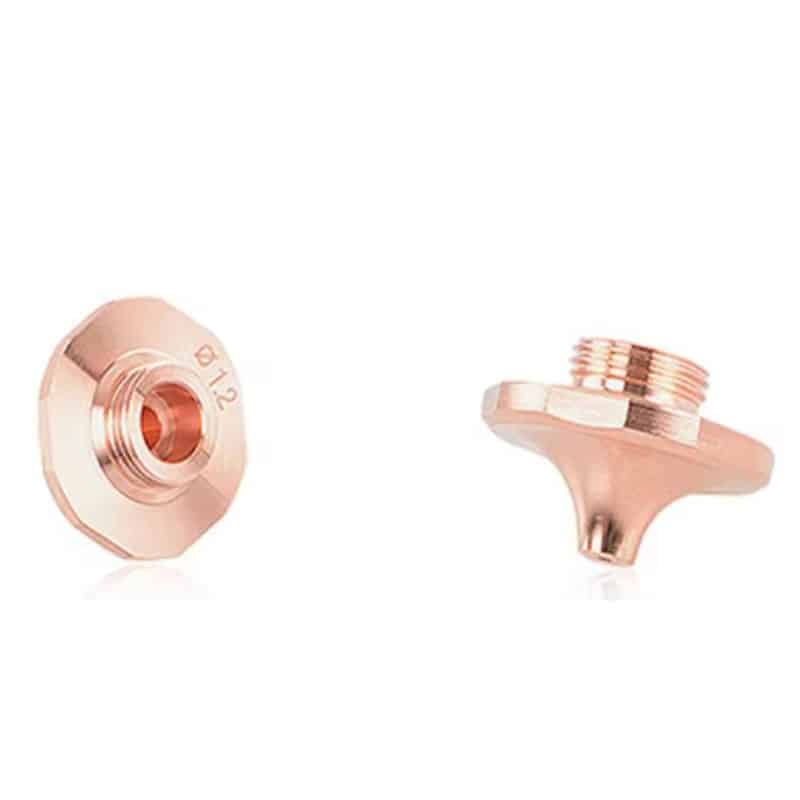

Trumpf Nozzle EAB W/Radius 0.8-2.7mm

 Diameter Trumpf P/N OEM No
0.8 1373324 EAB324
1.0 1373325 EAB325
1.2 1373326 EAB326
1.4 1373327 EAB327
1.7 1373328 EAB328
2.0 1373329 EAB329
2.3 1373330 EAB330
2.7 1373331 EAB331



Trumpf



Picture Model Dia

mm

Height

mm

Caliber

mm

Thread
trumpf nozzles

ECE

124561 ,124562,966809

237497,237501, 1253211

126933,942742

24 10 0.8-3.0 M8
trumpf nozzles

ECE

A-D24H10

Double layer

24 10 0.8-2.0 M8
trumpf nozzles

EAA

1324858,1324860,1324861

1324863,1324864, 1324865

1324866,1324867

25 15.5 0.8-2.3 M12
trumpf nozzles

EAU

2059462,2060001,2060004

2060025,2253595



20 15 2.5-10.0 M10
trumpf nozzles

EAK

1835747

25 15.5 2.5-4.0 M12
trumpf nozzles

EAQ

1809091,1809421,1886199

25 15.5 6.2-9.5 M12

trumpf nozzles

EAN

25 15.5 1.7-2.5 M12

Ask For A Quote
