Introduction
These are manufactured according to particularly stringent quality specifications.
General laser cutting nozzles are divided into single and double layers.
Single-layer nozzles are used for melting and cutting, nitrogen is used as auxiliary gas, it is used to cut stainless steel, aluminum alloy, brass, etc. as usual.
Double-layer nozzles are generally used for oxidative cutting, using oxygen as an auxiliary gas, usually used for cutting
carbon steel.
Double-layer nozzles are generally used for oxidative cutting, using oxygen as an auxiliary gas, usually used for cutting
carbon steel.
what is the difference between a single layer and a double layer?
Single-layer: Melt cutting; Nitrogen; Stainless steel, Aluminum 1. 4-3.0mm
Double layer: Oxidative cutting; Oxygen; Carbon steel;1.5-3.0mm
Trumpf
| Picture | Model | Dia
mm |
Height
mm |
Caliber
mm |
Thread |
 |
ECE124561 ,124562,966809 237497,237501, 1253211 126933,942742 |
24 | 10 | 0.8-3.0 | M8 |
 |
ECEA-D24H10 Double layer |
24 | 10 | 0.8-2.0 | M8 |
 |

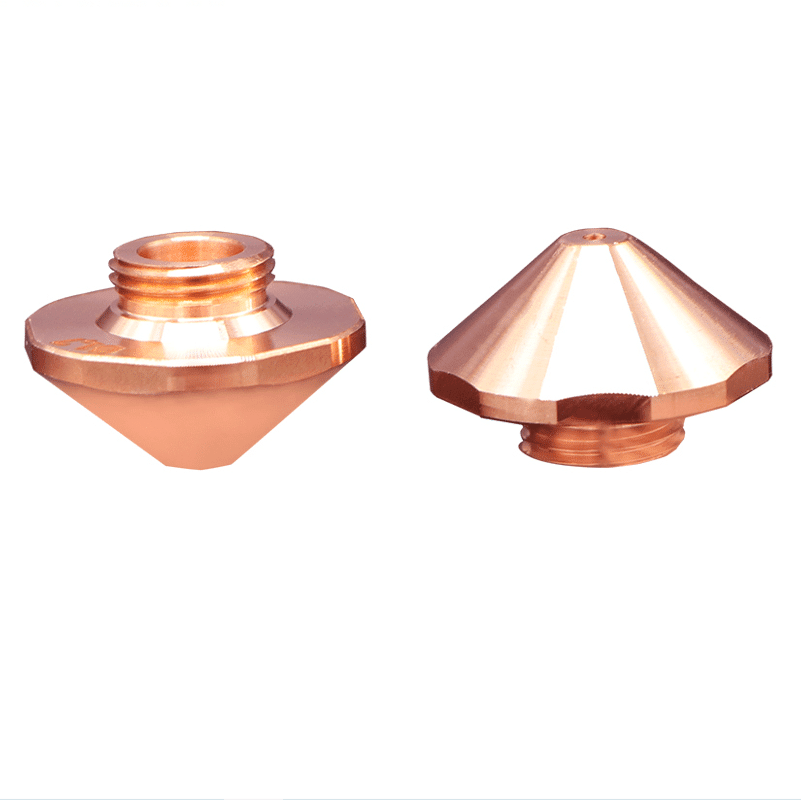

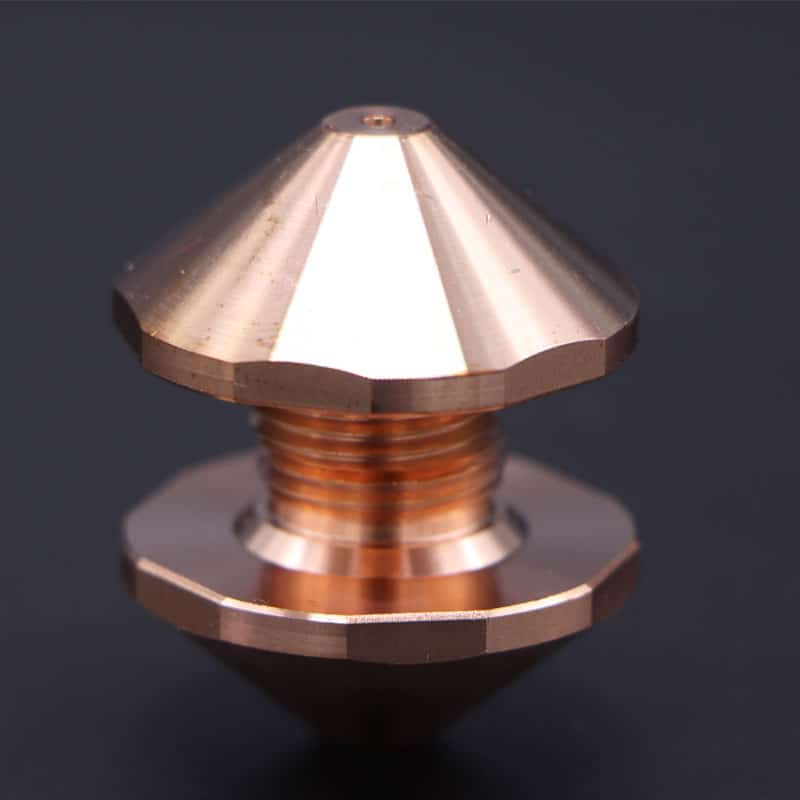

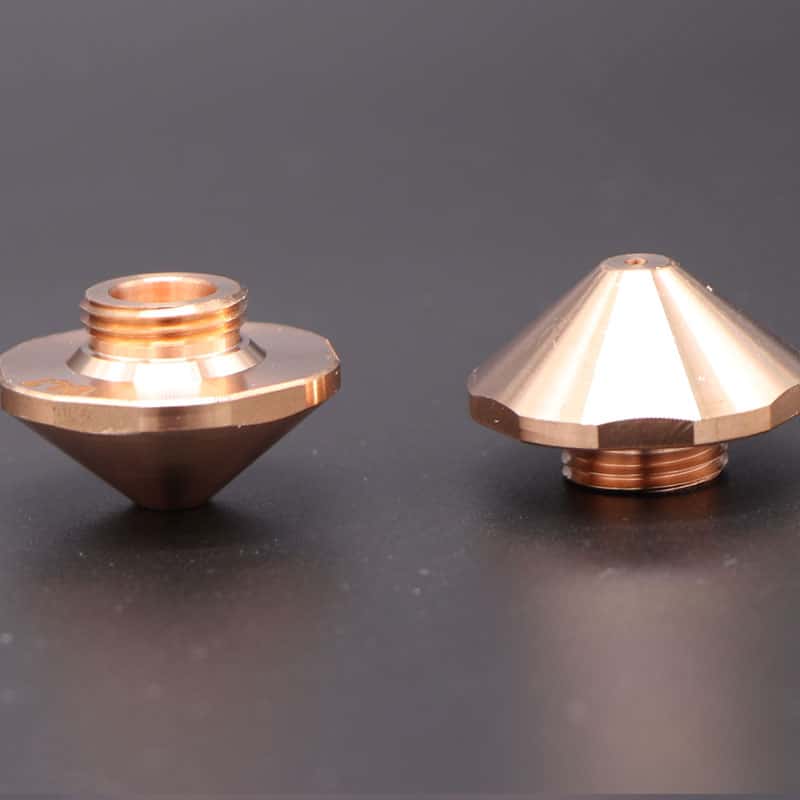

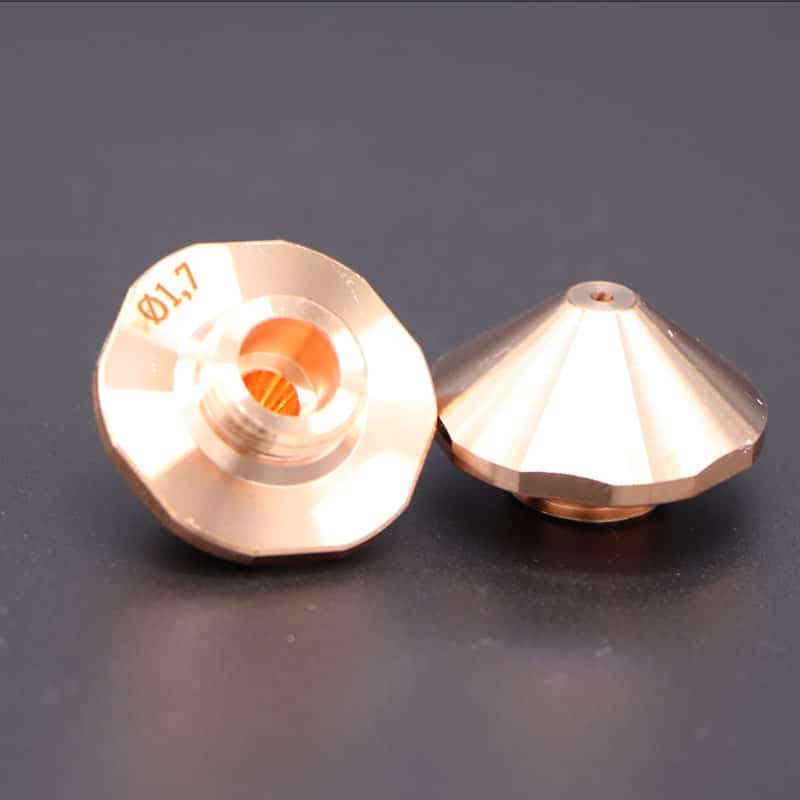

EAA1324858,1324860,1324861 1324863,1324864, 1324865 1324866,1324867 |
25 | 15.5 | 0.8-2.3 | M12 |
 |
EAU2059462,2060001,2060004 2060025,2253595
|
20 | 15 | 2.5-10.0 | M10 |
 |

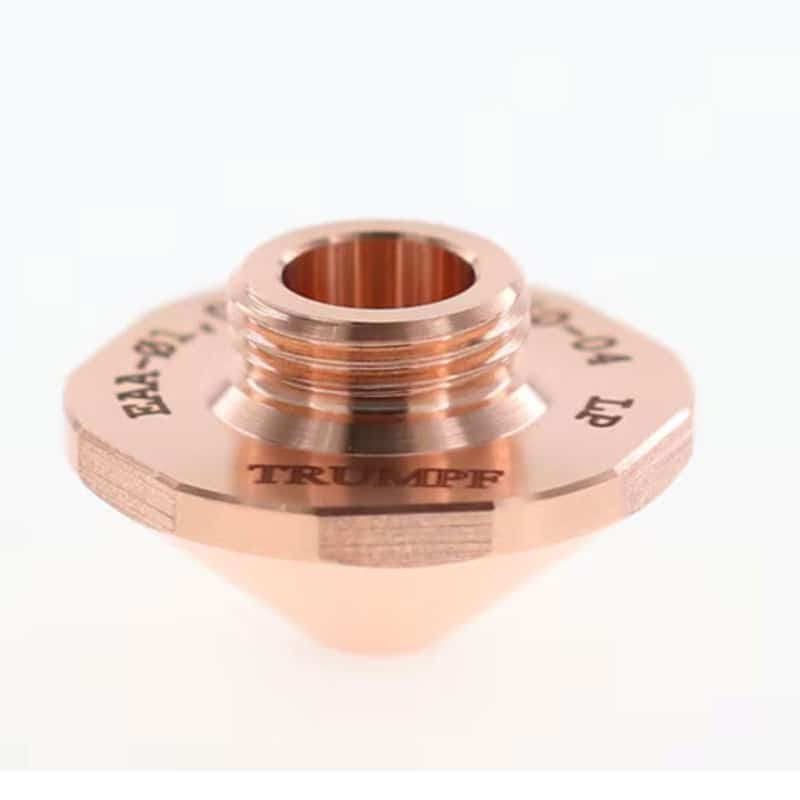

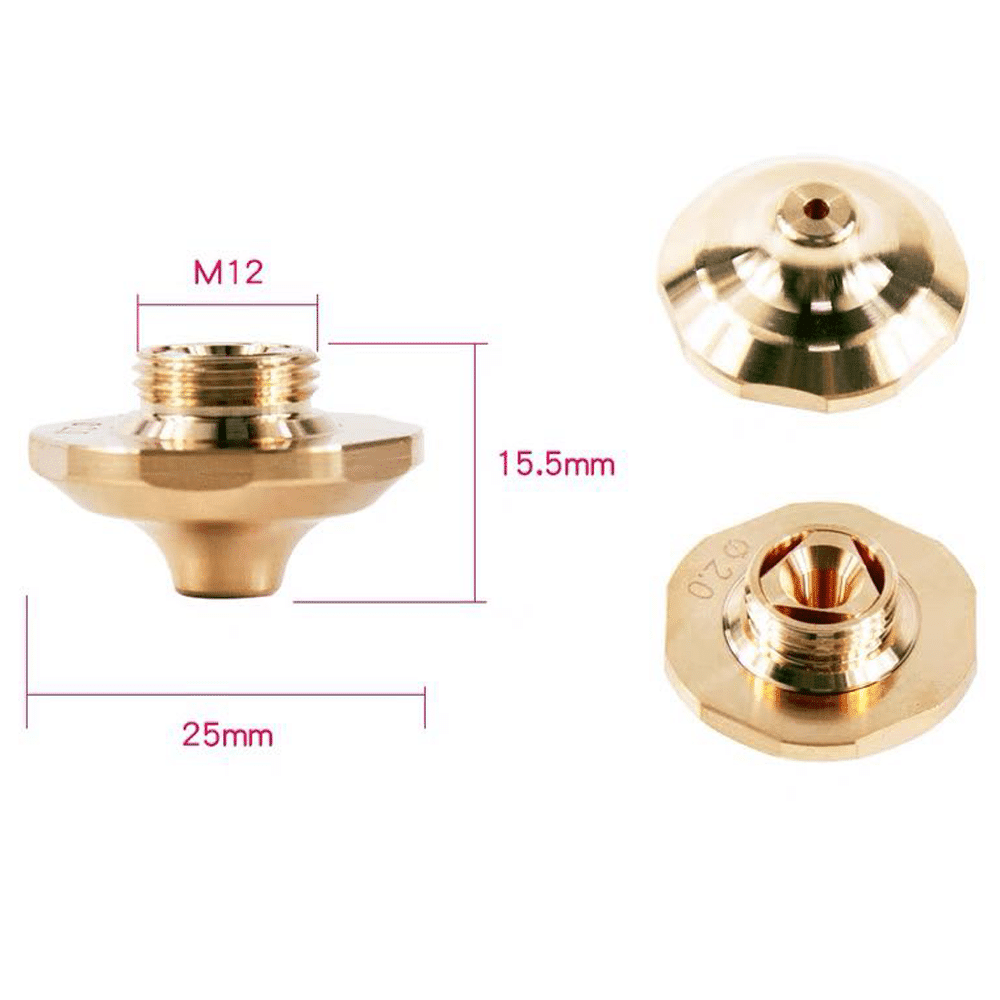

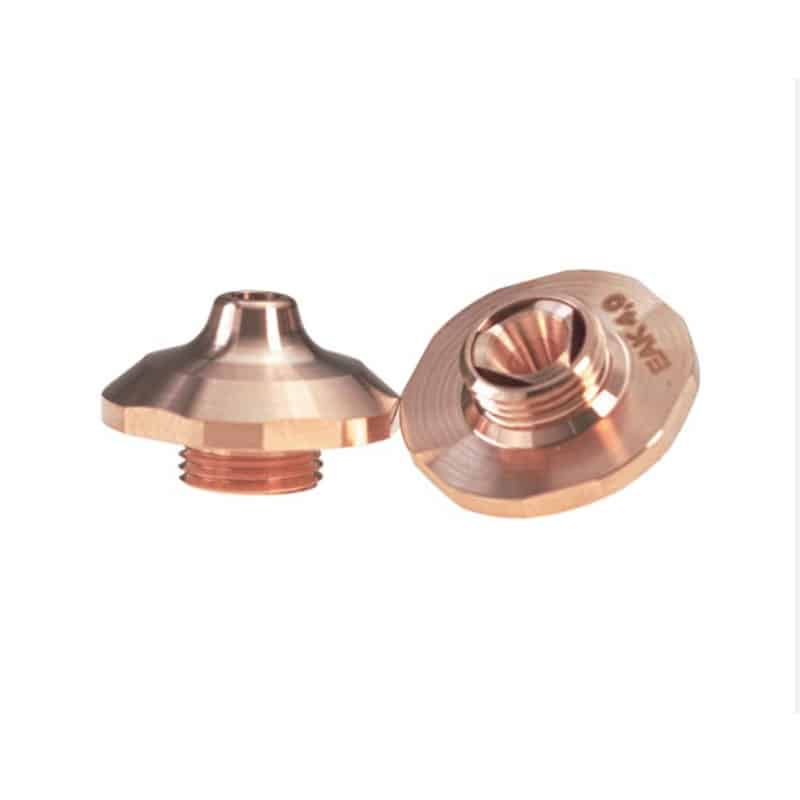

EAK1835747 |
25 | 15.5 | 2.5-4.0 | M12 |
 |
EAQ1809091,1809421,1886199 |
25 | 15.5 | 6.2-9.5 | M12 |
|
|
EAN |
25 | 15.5 | 1.7-2.5 | M12 |
