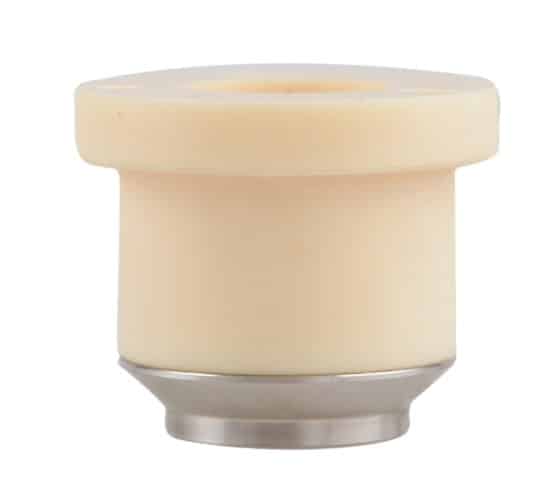

Trumpf Ceramic Nozzle Holder 2D M12 Ceramic Nozzle Holder 1906032

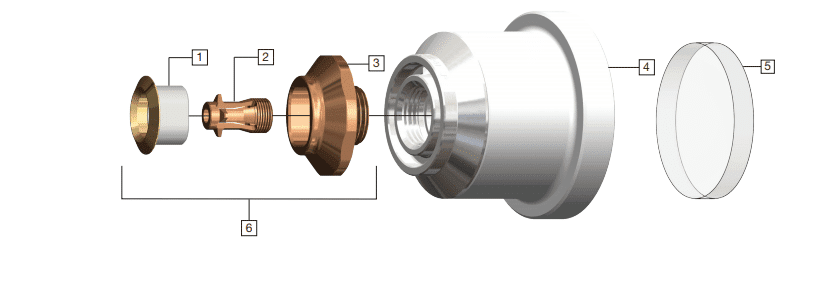

1906032-Nozzle Holder used with Trumpf® Highspeed Eco consumables, including #22843439ATTC Nozzle Sleeve, #2228802ATTC Inner Nozzle, and #2228806ATTC Nozzle Body.
Details about Trumpf Ceramic Nozzle Holder 2D M12 Ceramic Nozzle Holder 1906032
Fiber laser ceramic holder
We can supply for Bystronic, Trumpf, Prima, LVD, AMADA, Mitsubishi, Mazak, NTC, unity Prima, Hans, Farley Laser Lab, HighYag, and so on.
Suitable for TruLaser Series 1000, TruLaser Series 2000/3000 , TruLaser Series 5000, TruLaser Series 7000 Fiber, TruLaser Series 7000/8000 square cutting head, traumatic Series 3000 Fiber, TruMatic Series 3000/6000
ProCutter 2.0 and ProCutter Zoom 2.0,ProCutter 1.0; LightCutter; MiniCutter; HPxx; DS; SpeedCutter and M1.5” KN
Parameters Chart:
Ceramic Holder/Ring
Precitec:
| Picture | Model | Height | Thread |
 |
3D P0491-130-00001 | 10mm | M5 |
 |
OEM P0571-1051-00001 | 11.7mm | M11 |
 |
OEM P0571-260-00001 | 11.7mm | M11 |
 |
OEM P0571-1051-00001 Golden | 11.7mm | M11 |
Raytools:
| Picture | Model | Height | Thread |
 |
OEM 120274100B | 12mm | M14 |
Bystronic:
| Picture | Model | Thickness | Diameter |
 |
04-09010 | 6.5mm | 28mm |
 |
10032838 | 11.5mm | 26mm |
 |
4-01642 | 4mm | 25.9mm |
 |
4-01959 | 10.9mm | 26mm |
 |
3-13422 | 15mm | 34mm |
 |
3-13113 | 32mm | 5.5mm |
Trumpf:
| Picture | Model | Thickness | Diameter |
 |
0936678-913966 | 17.6mm | 17.6mm |
 |
254493-260432 | 32mm | 31.8mm |
 |
1755673 | 33.5mm | 41mm |
 |
1906032 | 33.5mm | 41mm |
Nukon/Highyag:
| Picture | Model | Thickness | Diameter |
 |
Pro | 22.5mm | 24.5mm |
 |
Rex/NF | 16.4mm | 35mm |
 |
10046025 | 4.0mm | 35mm |
IPG:
| Picture | Thread | Height | Diameter |
 |
M11 | 10.5mm | 28.7mm |
