| Power: | 1200W | 1500W | 2000W | 3000W |
| Operating Mode: | Continuous/Modulation | |||
| Laser Wavelength: | 1080+-5nm | |||
| Operating Environment Temperature Range: | 15-35ºC | |||
| Cable length: | 10M | |||
| Welding speed: | 0-120mm/sec | |||
| Welding thickness: | 0.5-5mm | |||
| Cooling system: | Air cooling | |||
| Welding head: | Qilin/Relfar/SUP welding head | |||
| Working Temperature: | 15-35 degrees | |||
| Power Supply: | 220V/380V 50Hz/60Hz | |||
| 1000W welding thickness: | stainless steel ,carbon steel 0-2mm galvanized sheet ,aluminum 0-1.5mm | |||
| 1500W welding thickness: | stainless steel ,carbon steel 0-3mm galvanized sheet ,aluminum 0-2mm | |||
| 2000W welding thickness: | stainless steel ,carbon steel 0-4mm galvanized sheet ,aluminum 0-3mm | |||
| 3000W welding thickness:
| stainless steel ,carbon steel 0-6mm galvanized sheet ,aluminum 0-5mm | |||

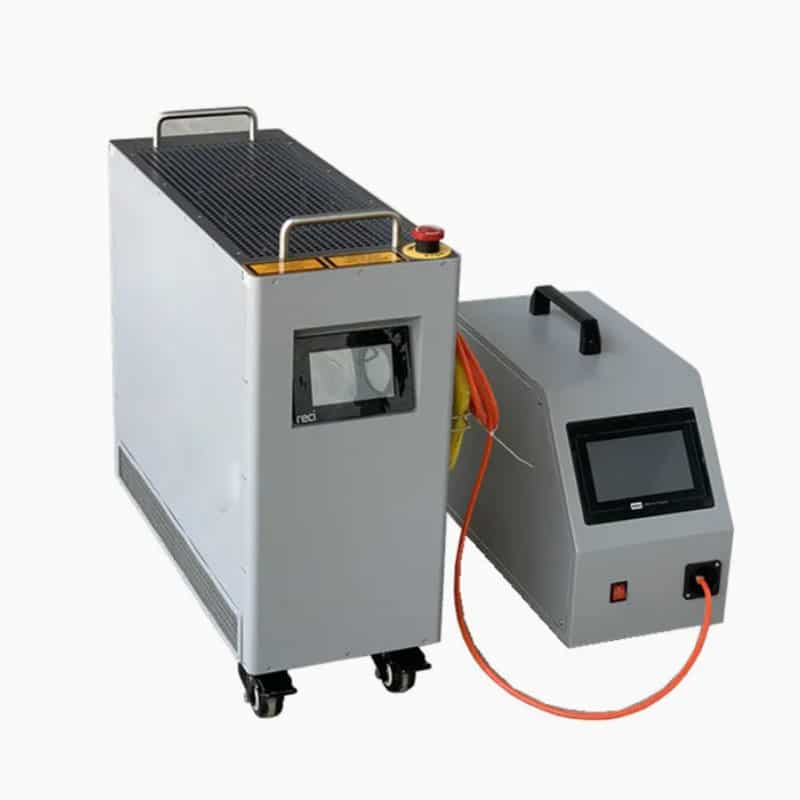

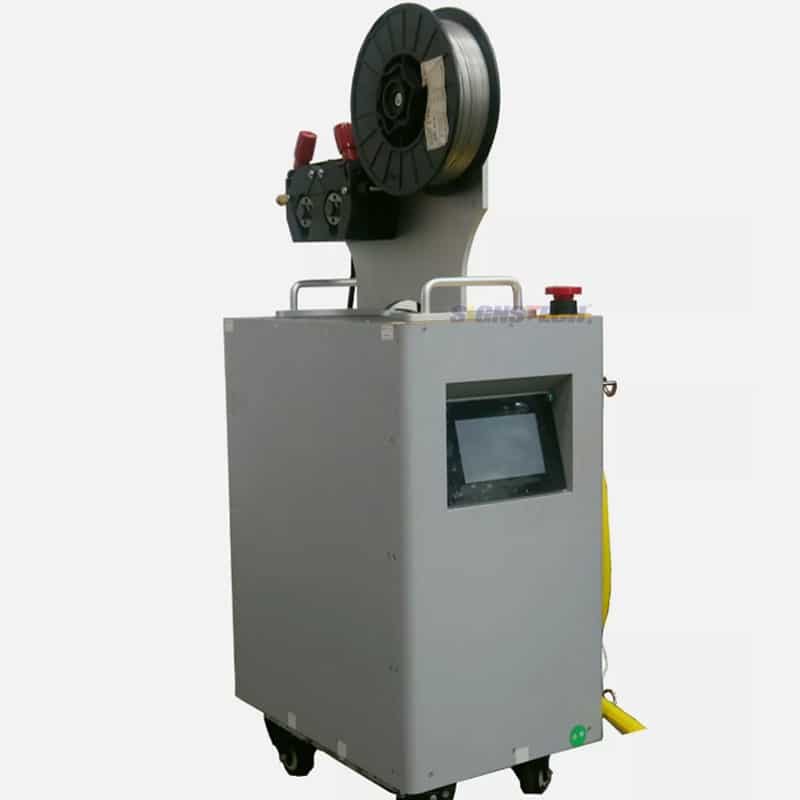

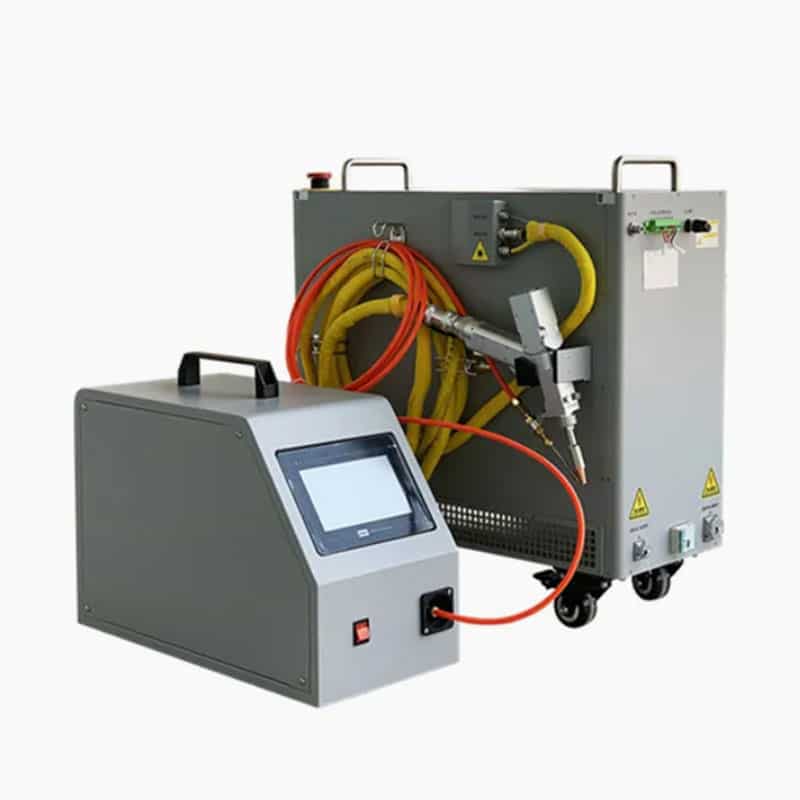

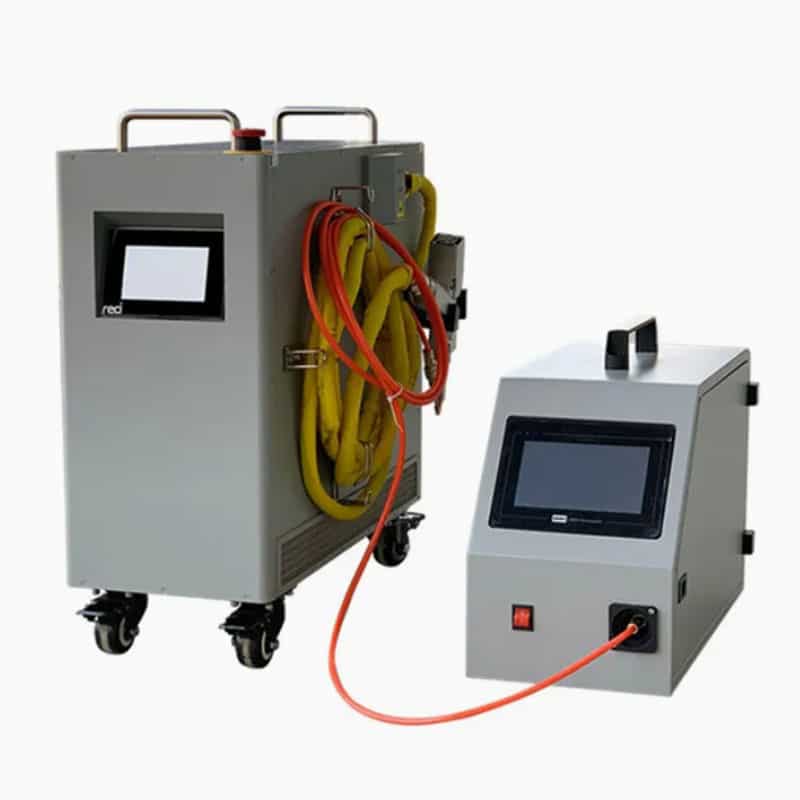

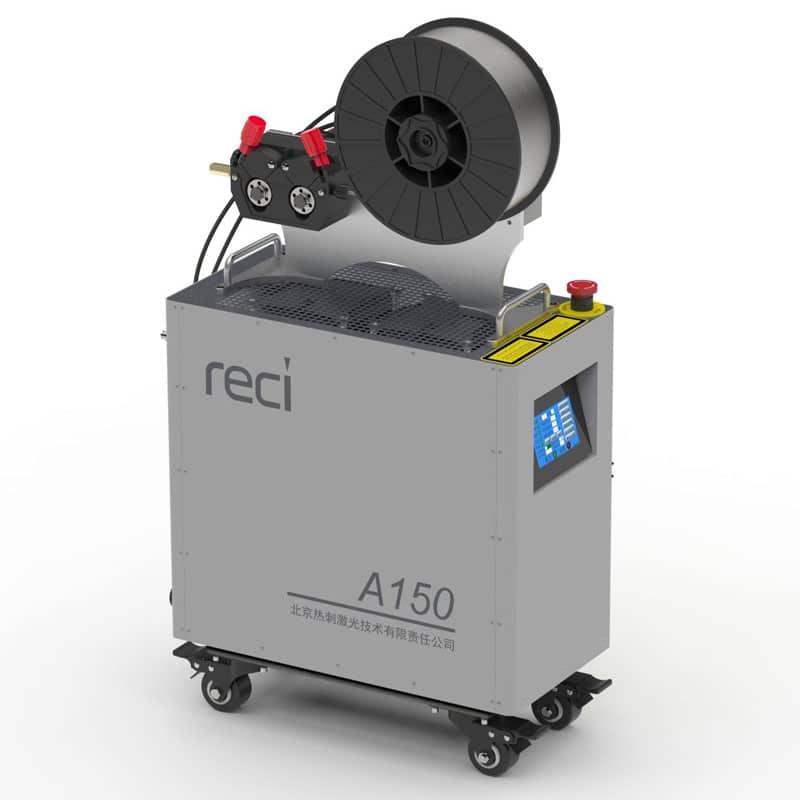

Air Cooling Fiber Laser Welding Machine Advantages
Simple structure and small size:
The air-cooled laser welding machine eliminates the complex water cooling system and uses fans and heat sinks for heat management, making the overall equipment structure more simple and compact. This design reduces the space occupied by the equipment and facilitates movement between different workplaces.
Easy to use:
The air-cooled system does not require using coolant or water, and the user does not need to pay attention to the water level, water quality and temperature of the coolant, reducing the workload of operation and maintenance. This reduces maintenance costs, and the equipment can be used after unpacking without the need for cooling water tanks or pipes.
Low cost:
The purchase cost and operating costs of the air-cooled laser welding machine are low. Since there is no water pump and coolant, the air-cooling system consumes less power and is more economical for long-term operation. In addition, the total cost of ownership of the air-cooled laser welding machine is generally lower than that of the water-cooled laser welding machine, especially in 1500w 2000w machine.
Environmentally friendly and efficient:
The cooling method of the air-cooled laser welding machine is more environmentally friendly and avoids the consumption of water resources.
Wide range of applications:
Air-cooled laser welding machines can use for common materials such as thin metals, stainless steel, aluminum alloys, and are widely used in electronics, home appliances, and light industry. Its portable design makes it very suitable for outdoor operations.
Efficient welding:
Compared with traditional manual arc welding, the welding speed of air-cooled laser welding machines is increased by 2-10 times. For example, for 1mm thick steel, the welding speed can reach 5m/min, which significantly improves production efficiency.
Beautiful welds:
The weld width can be controlled at 0.1-0.3mm, and the surface smoothness Ra≤0.1μm, without subsequent treatment. The weld is beautiful and has no deformation, which is suitable for high-precision welding needs.
Strong adaptability to the environment:
The air-cooled laser welding machine is not affected by the freezing of the coolant and is suitable for cold areas or low-temperature environments. It has relatively low requirements for ambient temperature, humidity, and other conditions, and can work stably in different environments.
