Protective lens Sealing ring for Fiber Laser cutting machine Precitec ,Raytools,WSX laser cutting head

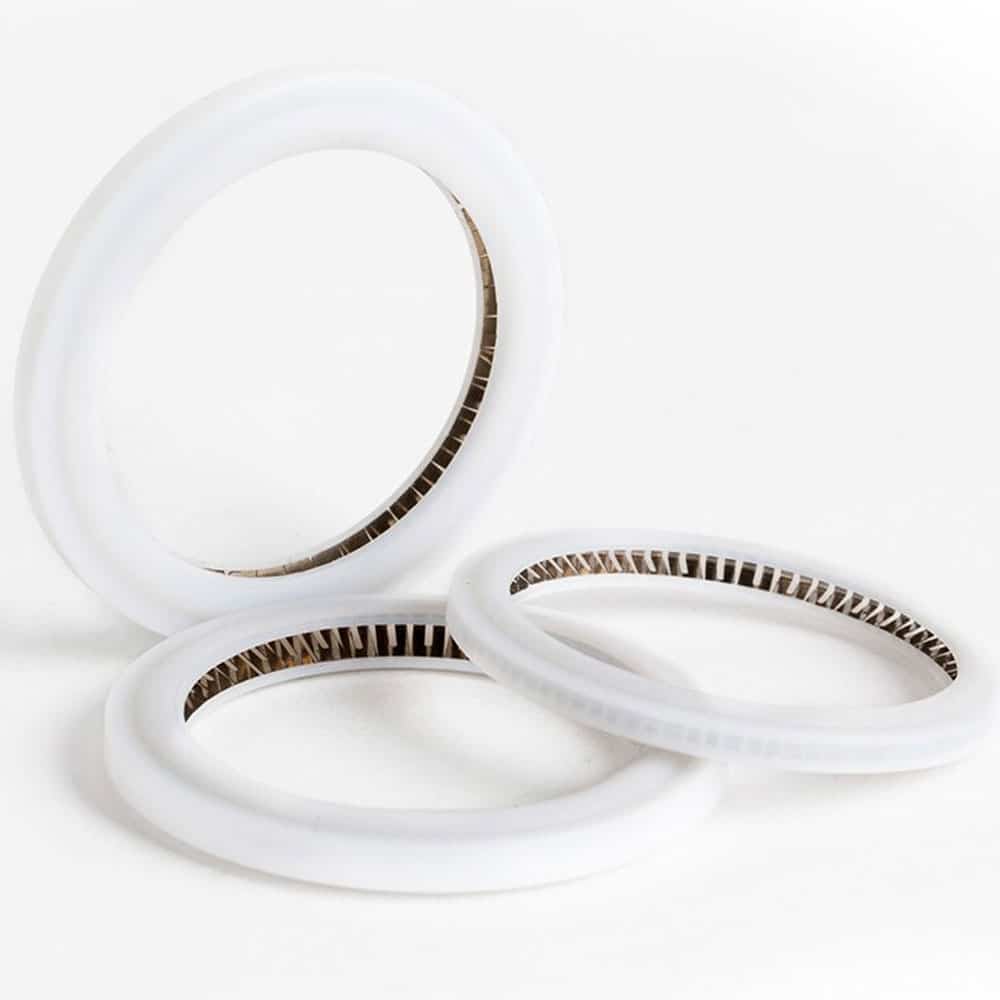

1. Main material: imported high-purity transparent PTFE
2. Spring: made of ultra-thin, high hardness, good flexibility, and high yield strength stainless steel
3. Main features: The material is wear-resistant, the surface is smooth and the friction is small, the spring force is appropriate, and it will not appear problems such as large suction resistance and poor sealing effect.
Details about Protective lens Sealing ring for Fiber Laser cutting machine Precitec ,Raytools,WSX laser cutting head

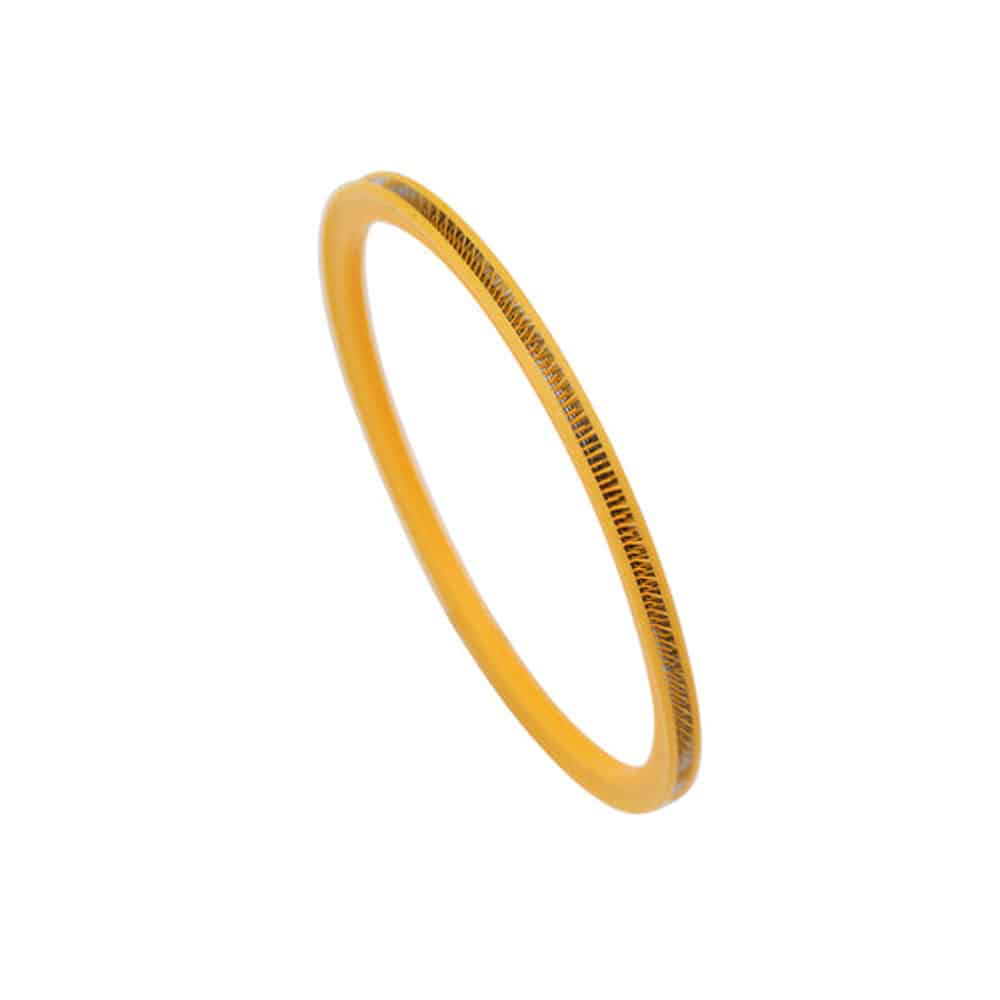

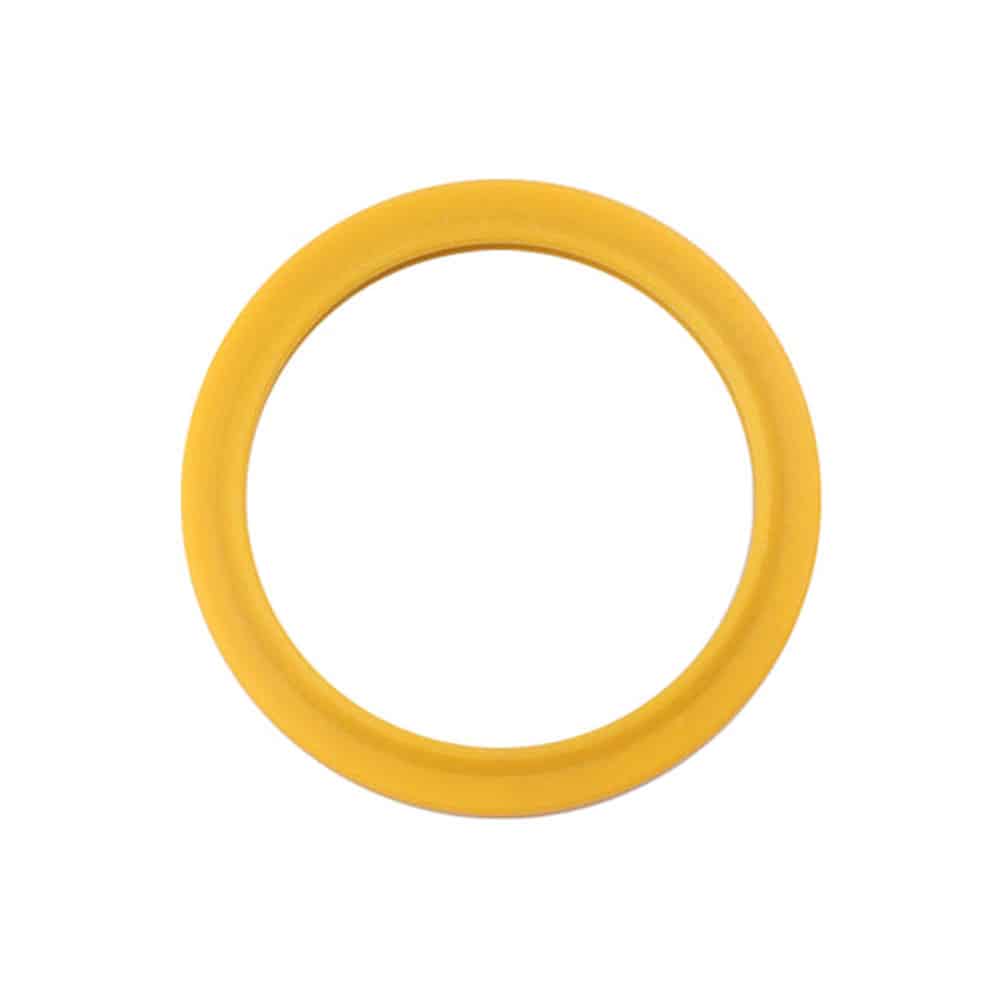

Sealing Ring/O-ring
The sealing ring is installed in the drawer of the protective lens. Through interference fit with the lower protective lens, the protective lens under the focusing lens is sealed to prevent dust and unclean gas from polluting the cutting head cavity, which will cause the focusing lens and collimation mirror group to be burnt.
Top Selling
31.5×24×3×2(For OSPRI/Precitec LightCutter Windows 30*5mm)
40.3×33×2.7×2(For Precitec ProCutter Windows 37*7mm)
54.5×44.7×3(For Precitec ProCutter Focusing Lens D37)
55.6×48.5×2.9(For Precitec ProCutter Focusing Lens D37)
Parameters :
| Ref No | Item | Parameters | Suitable for cutting head |
| 11021M2110007 | Seal ring (Middle/Bottom) | ∅32.2x24x3.55mm | BT210,BT210S,BT240 ,BT240S BM109,BM111 |

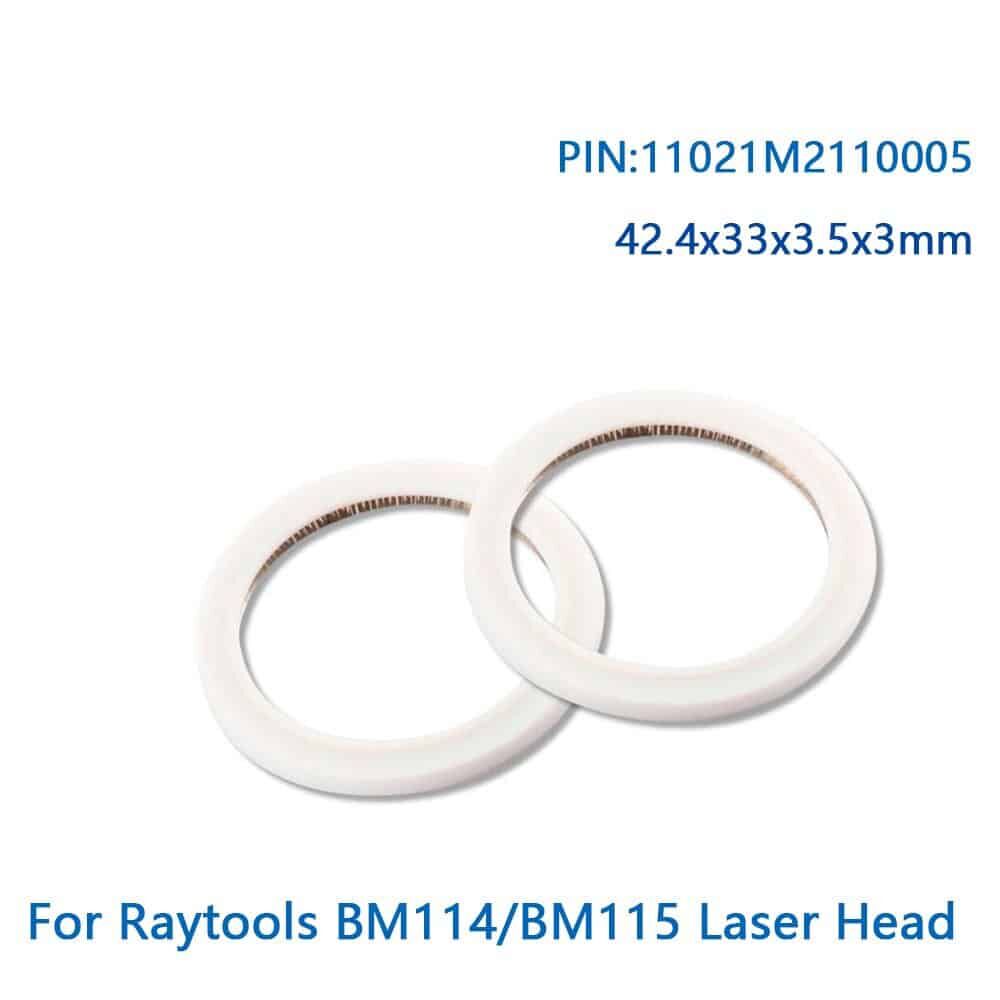

| 11021M2110005 | Seal ring | ∅42.5x34x3.2mm | BM114/BM114S/BM115 Raytools 37*7 windows |
| 11021M2110051 | Seal ring (Top) | ∅29.2x21x3.55mm | BT240S/BM109/BM111 |
| Seal ring | ∅41.5x34x3.4mm | Bodor 37*7windows | |
| P0595-59131 | Seal ring | ∅31.5*24*3mm
∅40.35*33.6*2.9mm ∅54.5*47.7*3mm ∅55.6*48.5*2.9mm |
Precitec ZM ProCutter DF Lightcutter Cutting Head 37*7windows |
| Seal ring | ∅26.6*18*3.6 | WSX KC13 KC15 NC30 22.35*4 Collimating protective windows | |
| Seal ring | ∅25.6*19*3 | WSX NC12 MN15 SW15 25.4*4 windows | |
| Seal ring | ∅29.8*23*3 | WSX KC13 KC15 NC30 30*5 focusing protective windows | |
| Seal ring | ∅29.8*23*3 | WSX 37*7windows |
