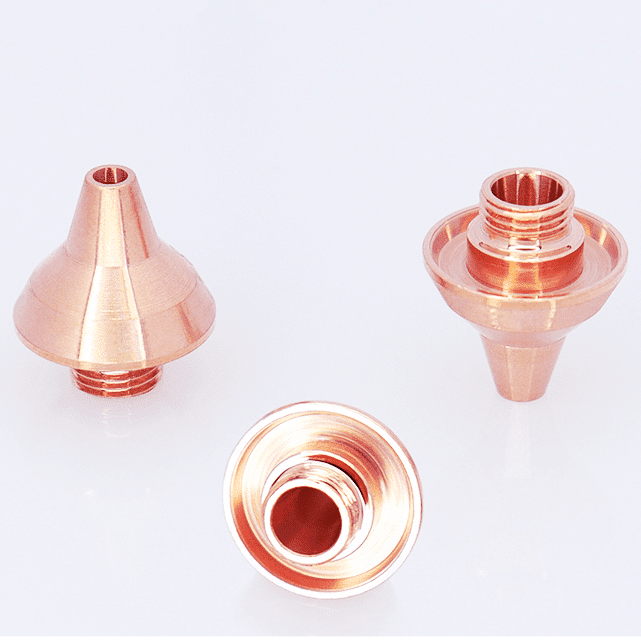

Mazak 3D Nozzles 1.5 mm 3D 46713300290-15, P0352-381-00015 for Mazak

Mazak 3D Nozzles 1.5 mm 3D 46713300290-15, P0352-381-00015 for Mazak

Details about Mazak 3D Nozzles 1.5 mm 3D 46713300290-15, P0352-381-00015 for Mazak

Introduction

These are manufactured according to particularly stringent quality specifications.

General laser cutting nozzles are divided into single and double layers.
Single-layer nozzles are used for melting and cutting, nitrogen is used as auxiliary gas, it is used to cut stainless steel, aluminum alloy, brass, etc. as usual.
Double-layer nozzles are generally used for oxidative cutting, using oxygen as an auxiliary gas, usually used for cutting
carbon steel.

what is the difference between a single layer and a double layer?
Single-layer: Melt cutting; Nitrogen; Stainless steel, Aluminum 1. 4-3.0mm
Double layer: Oxidative cutting; Oxygen; Carbon steel;1.5-3.0mm

Precitec



Ref No. Compatible with cutting head

Laser nozzle DE HP1.5″

P0591-569-00008/P0591-561-00010/P0591-562-00012

P0591-563-00015/P0591-564-00018/P0591-565-00020

P0591-566-00025/P0591-568-00030

Nozzle for cutting heads ProCutter 1.0, ProCutter 2.0 (with KT XB), LightCutter, HPxx, MiniCutter2D

suitable for ceramic parts KT B2” CON and KT XB

Laser Nozzle DE HP1.5″ outside cone-shaped

P0591-571-00010/P0591-572-00012/P0591-573-00015

P0591-574-00018/P0591-575-00020/P0591-576-00025

P0591-577-00030/P0591-578-00040/P0591-579-00050

Nozzle for cutting heads ProCutter 1.0, ProCutter 2.0 (with KT XB), LightCutter, HPxx, MiniCutter2D

suitable for sensors CM, Hx

suitable for ceramic parts KT B2” CON, KT XB

Picture Model Dia

mm

Height

mm

Caliber

mm

Thread OEM number
precitec-nozzles A-D28H15

Single-layer

28 15 0.8-5.0 M11 P0591-570-00008
precitec-nozzles- A-D28H15

Double layer

28 15 0.8-5.0 M11 P0591-002-00008
precitec-nozzles A-D28H15

Chrome-plated Single layer

28 15 0.8-5.0 M11 PC0591-570-00008
precitec-nozzles A-D28H15

Chrome-plated

Double layer

28 15 0.8-5.0 M11 PC0591-002-00008
precitec-nozzles B-D28H11

Single-layer

28 11 0.8-5.0 M11
precitec-nozzles B-D28H15

Single-layer

28 15 0.8-5.0 M11 P0591-563-00015
precitec-nozzles B-D28H15

Double layer

28 15 0.8-5.0 M11 P0591-002-0000
precitec-nozzles B-D28H15

Chrome-plated

Double layer

28 15 0.8-5.0 M11 P0591-569-00008
precitec-nozzles C-D28H15

Single-layer

28 15 0.8-4.0 M11
precitec-nozzles C-D28H15

Double layer

28 15 0.8-5.0 M11
precitec-nozzles C-D28H15

Chrome-plated single layer

28 15 0.8-5.0 M11
precitec-nozzles C-D28H15

Chrome-plated double layer

28 15 0.8-5.0 M11
precitec-nozzles D-D28H22.5 Single layer 28 22.5 1.5 M11
precitec 3d cutter 3D-D14H15

Single-layer

14 15 0.8-2.0 M9



Raytools



Picture Model Dia

mm

Height

mm

Caliber

mm

Thread
raytools-nozzes A-D32H15

Single-layer

120GJT0510/120GJT0512/120GJT0515

120GJT0520/120GJT0525/120GJT0530

120GJT0535/120GJT0540/120GJT0545

120GJT0550

32 15 0.8-5.0 M14
raytools-nozzes A-D32H15

Double layer



32 15 0.8-5.0 M14
raytools-nozzes A-D32H15

Chrome-plated Single layer

32 15 0.8-5.0 M14
raytools-nozzes A-D32H15

Chrome-plated Double layer

120GJT0610/120GJT0612/120GJT0615

120GJT0620/120GJT0625/120GJT0630

120GJT0635/120GJT0640/120GJT0645

120GJT0650

32 15 0.8-5.0 M14
B-D32H15

Single-layer

32 15 0.8-4.0 M14
raytools-nozzes B-D32H15

Chrome-plated

Double layer

32 15 0.8-5.0 M14
  raytools nozzles C-D32H15

Single-layer

32 15 0.8-5.0 M14
raytools nozzles C-D32H15

Chrome-plate

Single-layer

32 15 0.8-5.0 M14
raytools nozzles C-D32H15

Chrome-plated

Double layer

32 15 0.8-5.0 M14
raytools-nozzes D-D10.7H22.2

Single-layer

10.7 22.2 0.8-4.0
raytools-nozzes D-D10.7H22.2

Double layer

10.7 22.2 0.8-4.0
raytools 3D-D15H19

Single-layer

15 19 0.8-3.0 M8



Bodor

Picture Model Dia

mm

Height

mm

Caliber

mm

Thread
Bodor nozzles A-D28H15

Single-layer

28 15 0.8-4.0 M11
Bodor A-D28H15

Double layer

28 15 0.8-4.0 M11
Bodor nozzles B-D32H15

Single-layer

32 15 0.8-5.0 M14
Bodor B-D32H15

Double layer

32 15 0.8-5.0 M14



Trumpf



Picture Model Dia

mm

Height

mm

Caliber

mm

Thread
trumpf nozzles

ECE

124561 ,124562,966809

237497,237501, 1253211

126933,942742

24 10 0.8-3.0 M8
trumpf nozzles

ECE

A-D24H10

Double layer

24 10 0.8-2.0 M8
trumpf nozzles

EAA

1324858,1324860,1324861

1324863,1324864, 1324865

1324866,1324867

25 15.5 0.8-2.3 M12
trumpf nozzles

EAU

2059462,2060001,2060004

2060025,2253595



20 15 2.5-10.0 M10
trumpf nozzles

EAK

1835747

25 15.5 2.5-4.0 M12
trumpf nozzles

EAQ

1809091,1809421,1886199

25 15.5 6.2-9.5 M12

trumpf nozzles

EAN

25 15.5 1.7-2.5 M12



Bystronic



Picture Model Dia

mm

Height

mm

Caliber

mm

Thread
bystronic nozzles A-D13H17

NK Double layer

13 17 1.0-3.0 M10
bystronic nozzles A-D13H17

HK Single layer

13 17 0.8-4.0 M10
bystronic nozzles B-D13H17 13 17 0.8-3.0 M10
bystronic nozzles 10046030 38 17.5 M10
bystronic nozzles 2-08700 52 9.5 M12
bystronic nozzles 10032930 26 30.5
bystronic nozzles 2-08701 28 30.5
