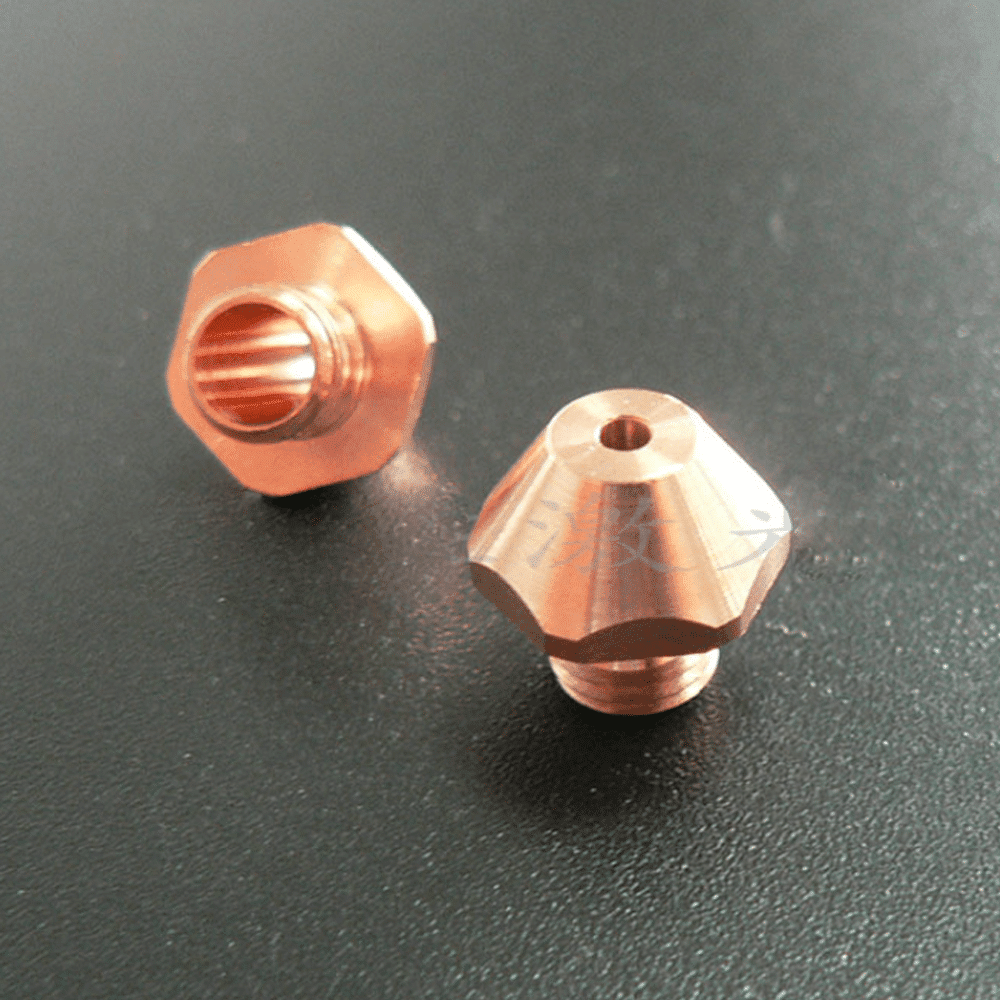

EBD HD Nozzle 2.0mm TRUMPF No:1487009

Diameter Trumpf Ref Our part number
0.8mm 1354230 EBD 230
1.0mm 0212334 EBD 334
1.2mm 1479581 EBD581
1.4mm 0216199 EBD199
1.7mm 0225213 EBD213
2.0mm 1487009 EBD009
2.3mm 0126156 EBD156



Trumpf



Picture Model Dia

mm

Height

mm

Caliber

mm

Thread
trumpf nozzles

ECE

124561 ,124562,966809

237497,237501, 1253211

126933,942742

24 10 0.8-3.0 M8
trumpf nozzles

ECE

A-D24H10

Double layer

24 10 0.8-2.0 M8
trumpf nozzles

EAA

1324858,1324860,1324861

1324863,1324864, 1324865

1324866,1324867

25 15.5 0.8-2.3 M12
trumpf nozzles

EAU

2059462,2060001,2060004

2060025,2253595



20 15 2.5-10.0 M10
trumpf nozzles

EAK

1835747

25 15.5 2.5-4.0 M12
trumpf nozzles

EAQ

1809091,1809421,1886199

25 15.5 6.2-9.5 M12

trumpf nozzles

EAN

25 15.5 1.7-2.5 M12







Ask For A Quote
