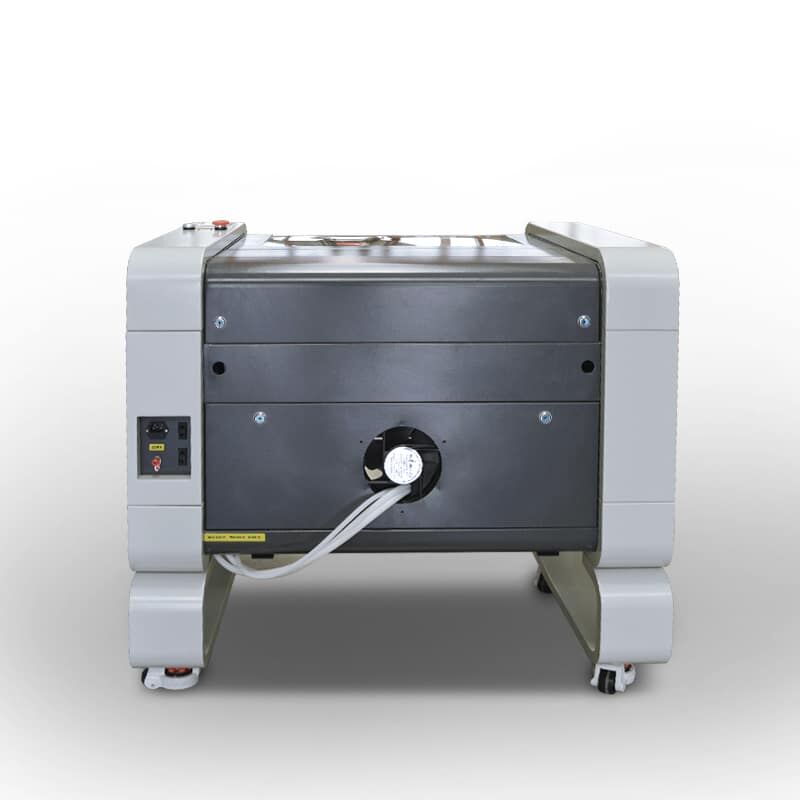

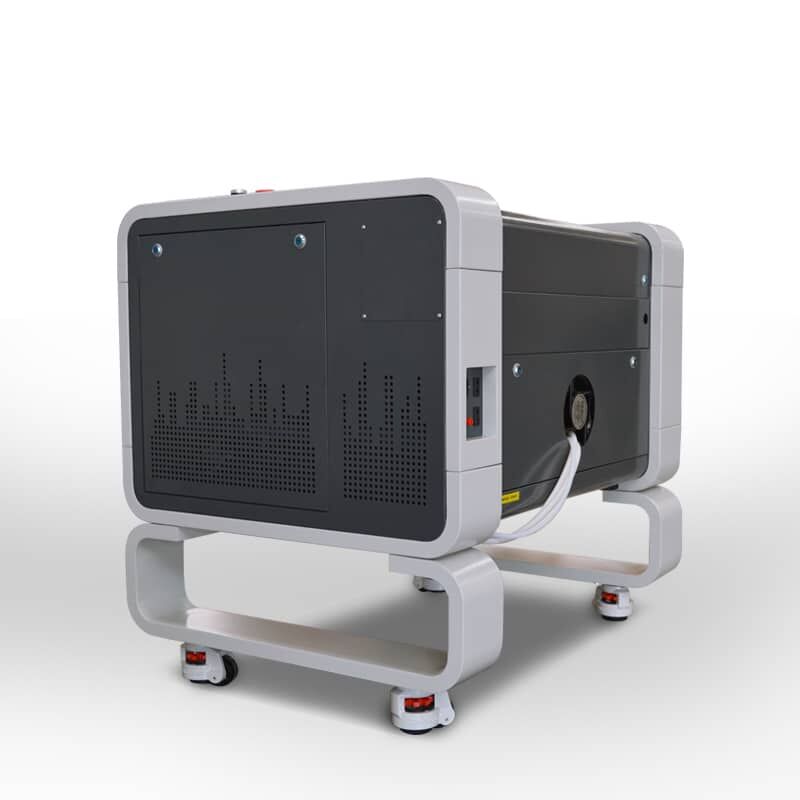

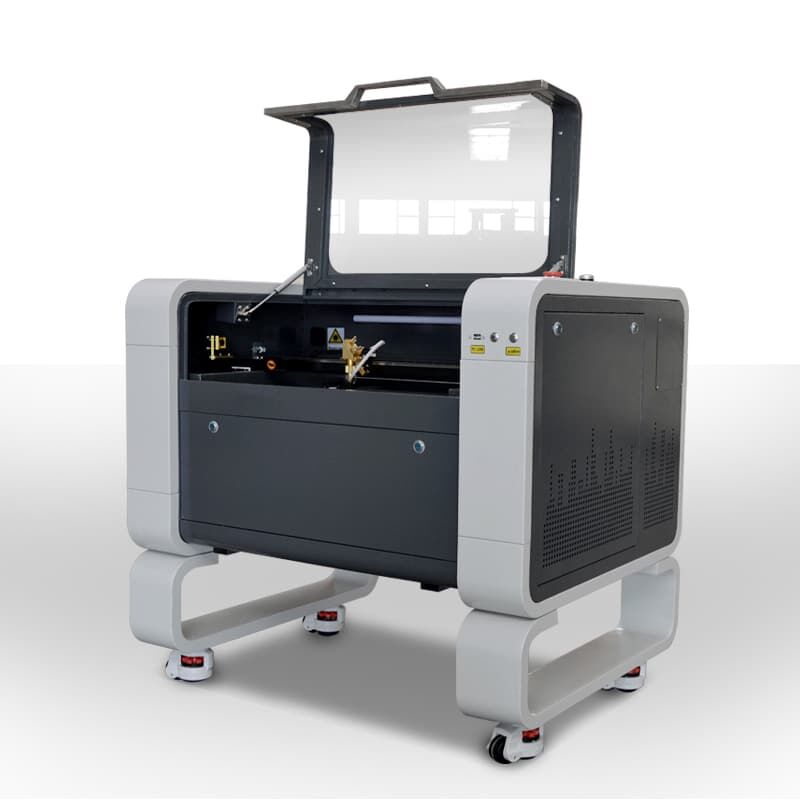

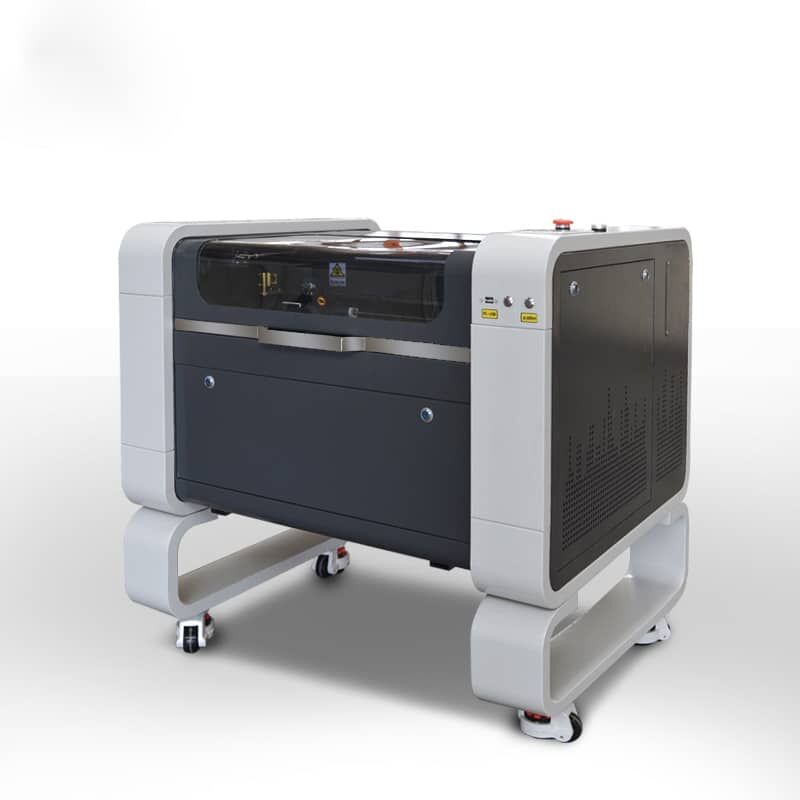

6040 laser engraving machine, compact, widely used, economical, and applicable, is a good machine for engraving and cutting non-metallic materials. 6040 laser engraving machine can be equipped with an automatic lifting table, the range of lifting is 1-400mm, and the range of carving is wider, which can meet the needs of non-metallic materials of different thicknesses.
Parameter:
| Model | Laser engraving machine (6040) |
| Working area | 60cm*40cm |
| Equipment Dimension | 105m*75cm*97cm41in*30in*38in(L*W*H) |
| Laser power | 60/80/100/130/150W |
| Laser type | CO2 sealed laser tube, water-cooled |
| Engraving speed | 0-6000cm/min |
| Cutting speed | 0-5000cm/min |
| Power supply | 220V/50HZ, 110V/60HZ |
| Graphic format supported | BMP, PLT, DST, DXF, AI |
| Software supported | CorelDraw, PhotoShop, AutoCAD,TAJIMA |
| Driving system | stepper motor |
| Net Weight | 150kg |
| Optional parts | Up-down worktable, Rotary axis |
| Applicable material | Acrylic, crystal, glass, ceramic, marble, metal coating, cloth, fabric, wood, etc. |
Application:
| Material | Cut | Engrave |
| Acrylic | Plexiglass | PMMA | Perspex | √ | √ |
| Organic board | Double color sheet | √ | √ |
| Wood | Plywood | Veneer | MDF | Balsa | √ | √ |
| Leather | PU | Shoe Material | Synthetic Leather | Genuine Leather | √ | √ |
| Fabric | Cloth | Textile | √ | √ |
| Carpet | Mat | Rug | Wool Felt | √ | √ |
| Paper | Cardboard | Chipboard | Press Board | √ | √ |
| Ceramic | Tile | Marble | Glass | √ | √ |
| Plastic | √ | √ |
| Fiber Glass | Filter Cloth | √ | √ |
Optional Accessories:
Water chiller: has a better cooling effect, which will let machine and laser tube have a longer service life.
Chuck Rotary: is for irregular objects, like tapered, etc. Non-standard Chuck Rotary is for regular objects, like rounded,
cylindrical, etc.
Blade work platform: It can reduce the reflection of light and make the engraving effect better
Auto Focus uses magnetic plunger technology to precisely position the table automatically with every job. It’s the simplest, most convenient method available of ensuring proper focus on every engraving job.
Package Includes:
1 x Laser Engraver Machine
1 x Water Pump
1 x Network Cable
1 x Grounding Wire
1 x Vent Duct
2 x Water Hoses
1 x User Manual (English)
1 x USB Cable
1 x USB Stick with Software
1 x Stainless Steel Clamp
1 x Double-sided Tape
1 x Power Cord
1 x Accessory Bag
2 x Keys
1 x Silicone Sealant
