Introduction Of Laser Machine Cable Drag Chains

Drag chain is suitable for the CNC machine tools,machining centers, automated machinery and production lines and other kinds of machine tools,robots, transport machinery, measuring instruments, handling device and other liquid drive control as a wire, cable, gas hose protection device, can take on machine tools, machinery and equipment moving parts run harmoniously, can play a safety protection and the ability to guide, can prolong protected wire, cable, liquid, gas hose service life and reduce consumption, can greatly improve the machine tools, machinery and equipment of wire, cable, liquid, gas hose to confirm the unorderly situation existing in distribution, make it tidy and rules is arranged together, can enhance the overall artistic effect of machine tools.

Material and Performance

Material: Reinforced nylon, good toughness and wear

resistance, acid and alkali resistant ability.

Operating Life: Under normal use, up to 5 million reciprocating motion.

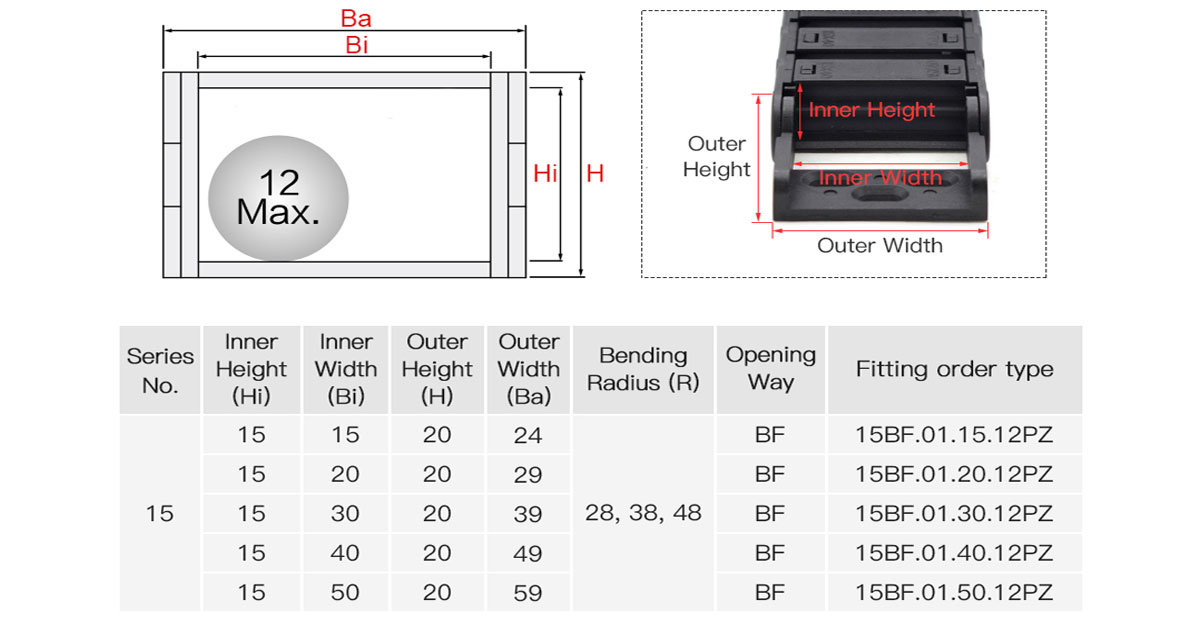

Drag Chain Selection

High: Select the built-in cable, tubing, the trachea and conduit maximum height for reference, the height of the drag chain at least 10% of the remaining space.

Wide: Choose the built-in cable, tubing, trachea, the sum of its outer diameter for reference, the width of the drag chain at least 10% of the remaining space.
