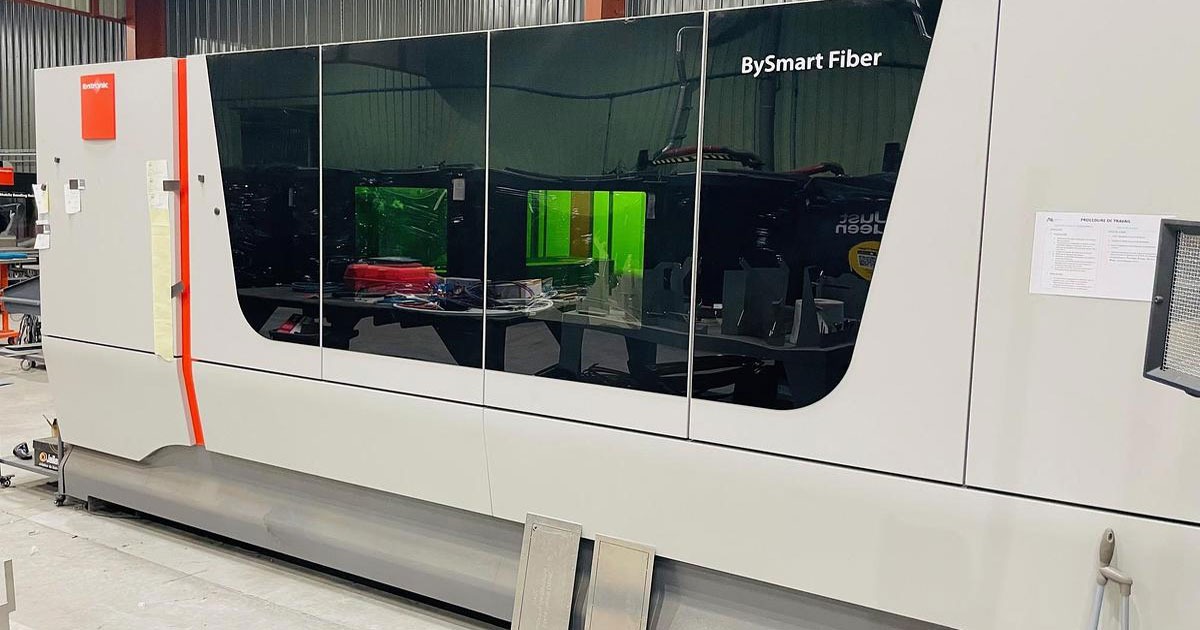

If your BySmart Fiber (GPL ll) machines with SSC V1 cutting head is not working anymore here are 2 options for your reference:
• SSC V1 SSC V2.2 with HLC 8 (attachment to existing HLC8 working fiber) parts number :10198556
• SSC V1 SSC V2.2 with HLC 16 (conversion to HLC16 working fiber) parts number :10198557

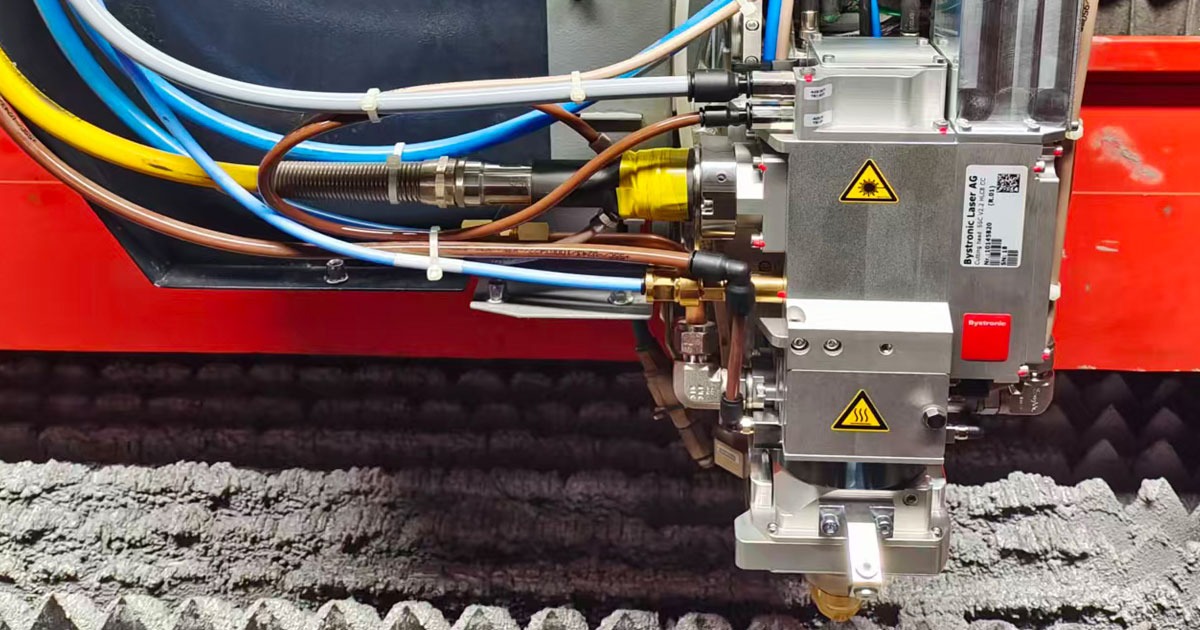

New Features of the V2.2 Cutting Head
- Ultra-thin design reduces the risk of collisions
- Improved cooling system with a series cooling design. The Cutting Head SSC V2.2 has an improved cooling system (serial instead of parallel, so that flow problems are detected immediately and a generally higher flow rate is provided) and includes a faster lens adjustment.
- Latest high-reliability, high-efficiency focusing system upgrade, improving performance by 33%
- The maximum power, up to 10 kW or above ,Cutting medium-thickness carbon steel plates (4–12 mm) using N₂
- Optimized interface layout
- Brand-new mechanical structure
- Upgraded valve body design
- Compatible with mixed-gas cutting (MixGas)
The V2.2 cutting head includes the following main spare parts:
- 10125820 Cutting Head SSC V2.2 warranty :1 year
- 10149952 N₂ Regulator
- 10119522 Automatic Centering Kit
Installation accessories include all required hardware, air hoses, fittings, and some related components.
Installation time : 2-3days
If you need any Conversion Instruction, please feel free to contact us at any time.
