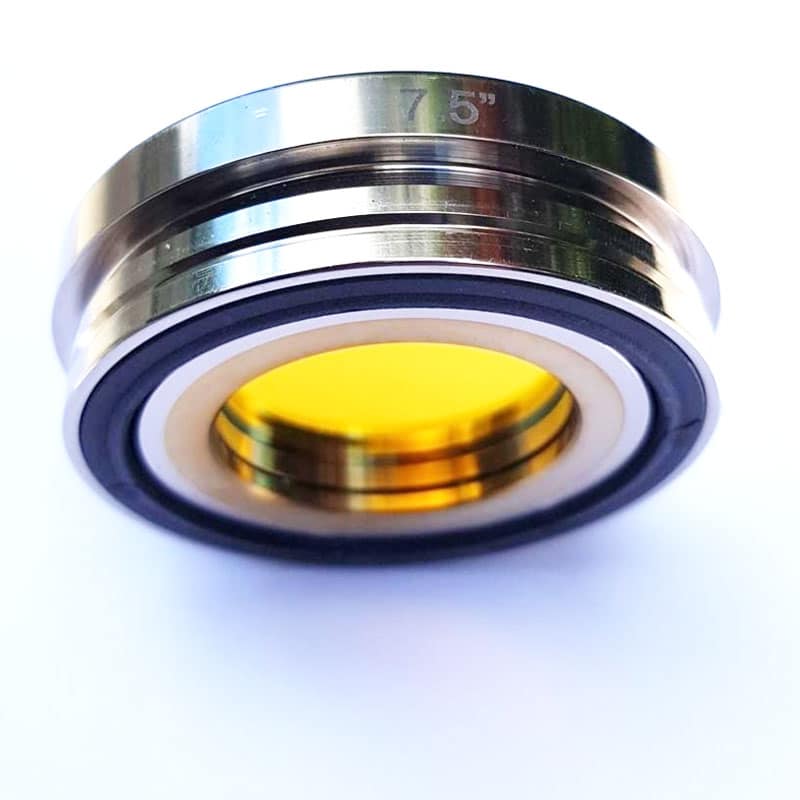

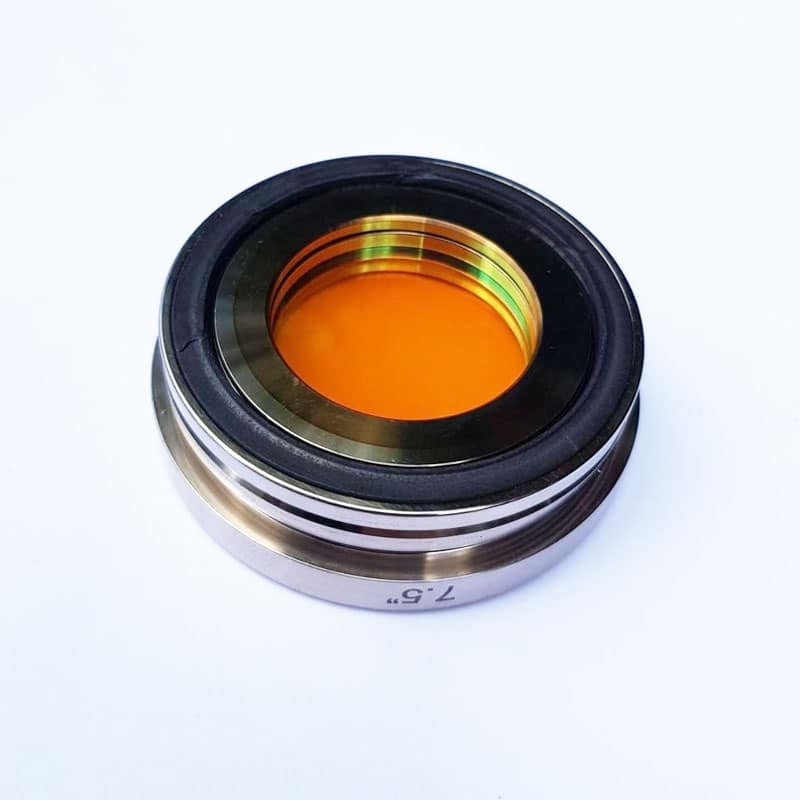

Mounted Lens ZnSe Plano-convex lens assemply for Amada 71501070 71501072

  • Effective Focal Length (EFL) :Tolerance: ±2%
  • Dimensional Tolerances :Diameter: +0.000” -0.005”
  •                                                Thickness: ±0.010”
  • Edge Thickness Variation (ETV) : ±0.002”
  • Parallelism :Plano: <3 arc minutes
  • Surface Figure (power-irregularity) at 0.63 microns :Plano: 1 fringe – 0.5 fringe
  • Radiused: depending on radius
  • Surface Quality: Scratch-Dig :40-20
  • AR Coating Reflectivity Per surface at 10.6 microns:0.25%

High-power CO2 laser lenses, and the preferred optics supplier of CO2 laser OEMs worldwide.

Our line of lenses includes: Ultra-Low Absorption Coating

Co2 Laser Optics Meniscus Lenses

Meniscus lenses have one concave surface and one convex surface. Creates a smaller beam diameter, reducing the spherical aberration and beam waste when precision cutting or marking. Provides a smaller spot size with increased power density at the workpiece.

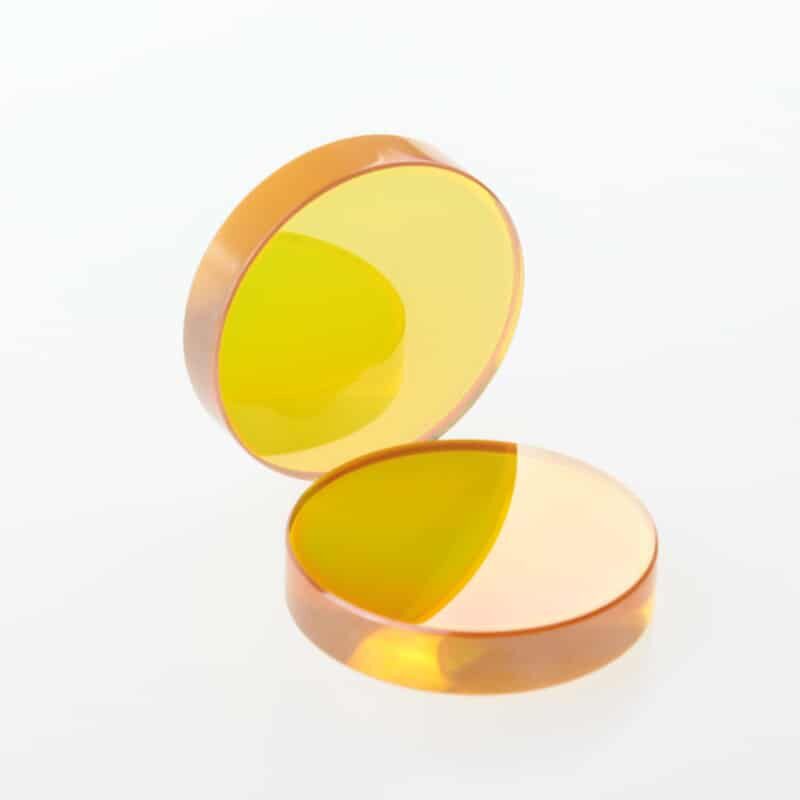

Co2 Laser Optics Plano-Convex Lenses

Plano-convex lens has one flat surface and one convex surface. More suitable for high turnover cutting applications, and when the cost is more important than the level of accuracy. When Co2 laser cut steel and other thick materials, a Co2 laser Plano-convex lens provides a greater cut width, enabling the laser’s oxygen to assist gas to aid the cutting process.
znse-lens-pictures

We provide different types of focusing lenses for different types of laser machines such as k40,6040 ,6090,1390,1325… the power from 40w to 3000W can fully meet the needs of laser cutting, suitable for major laser brands of equipment such as epilog laser,thunder laser,trotec laser,voiern laser,perfect laser,bystronic,mazak etc.

If you want more information, feel free to contact us.

Parameters Chart:

laser-optics

High Power Lenses:

Reference No Description
BY314-0185 4-00185, 4-00372, 142375, 60603 MEN ZNSE 1.5″ 3.75″ .236″

Diameter: 1.5″ (38.1mm)

Focal Length: 3.75″ (95.25mm)

Edge Thickness: .236″ (6mm)

097517, 60697, 702232, 110110, 61983, 29100030 Diameter: 1.5″ (38.1mm)

Focal Length: 7.5″ (190mm)

Edge Thickness: .291″ (7.4mm)

088114

097517



038115/1770805

038117/1772319

1330443/1796128

Lens Meniscus ZnSe Dia 1.5″, FL 5″,

Lens Meniscus ZnSe Dia 1.5″, FL 7.5″

Dia40mm FL250mm

Dia40mm FL130mm

Dia50mm FL250mm

Ask For A Quote
