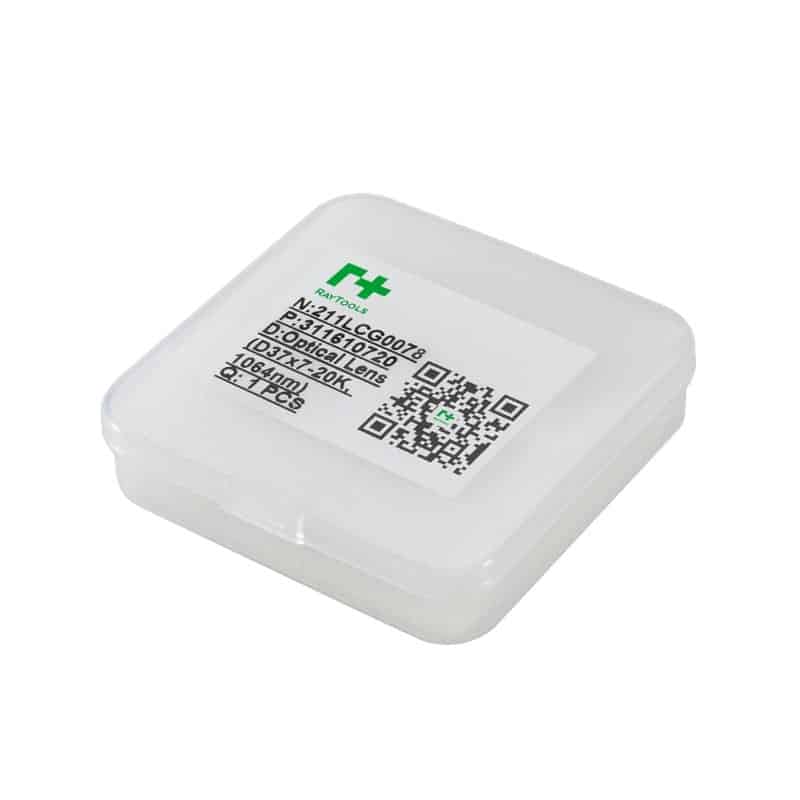

FS37x7mm – D37 d7 211LCG0078 protective windows for Raytools laser cutting heads

Product Description: Dia 37mm ET 7 mm Fiber Laser Protective 99.96%,AR/AR@10 30-1090nm

Size:37 mm 7mm  211LCG0078

Ref  No:BM114S  Laser Head.

Description: Broadband AR 1030 – 1090 nm

Protective Windows: The contamination of the focusing lens is one of the main for poor laser performance and potential downtime. The laser cutting head is very sensitive to any type of contamination. Wewinlaser the best quality of protective windows to protect the focusing lens against contamination.

There are two kinds of lenses inside the laser head — collimating lens and focusing lens, both of them are sensitive to any type of contamination. Especially the material splatter while the laser cutting the metal. Normally need to replace a piece a day depends of different metal cutting and the para of laser machine, Comparing the cost of collimating lens and focusing lens, the price of protective lens is inexpensive.

That’s why we need the protective lens (protective windows) to protect the focusing lens and the collimating lens to ensure the optic system working stability during laser cutting. Because it protects focusing lens and collimating from back spatter and debris.

The protective lens is positioned between the lens and the metal sheet. Obviously that it is the most consumed optical element in fiber laser cutting head.

Ref no Size(mm)
211LCG0103 18*2
211LCG0105 20*3
211LCG0034 22.4*4.1
211LCG0020 24.9*1.5
211LCG0086 24.9*1.5
211LCG0111 26*3
211LCG0037 27.9*4.1
211LCG0037E 27.9 * 4.1
211LCG0073 30*1.5
211LCG0068 30*5
211LCG0045 37*1.6
211LCG0078 37*7

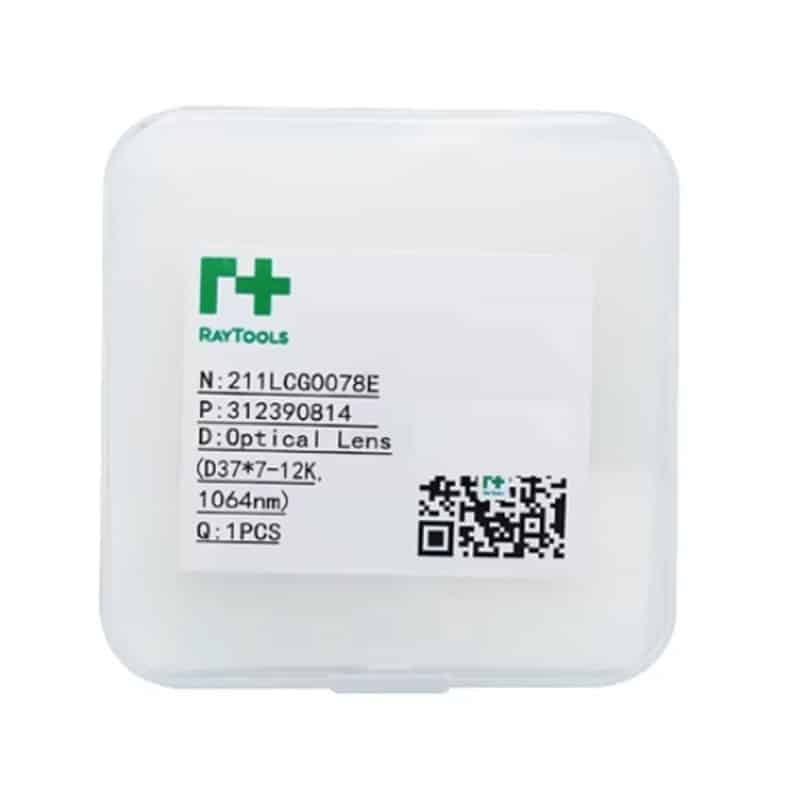

211LCG0078E 37*7
211LCG0076 38.1*1.6
211LCG0075 38*2
211LCG0069 50*2
211LCG0070 50*2
211LCG0021 55*1.5
