There are two kinds of lenses inside the laser head — collimating lens and focusing lens, both of them are sensitive to any type of contamination. Especially the material splatter while the laser cutting the metal. Normally need to replace a piece a day depends of different metal cutting and the para of laser machine, Comparing the cost of collimating lens and focusing lens, the price of protective lens is inexpensive.
That’s why we need the protective lens (protective windows) to protect the focusing lens and the collimating lens to ensure the optic system working stability during laser cutting. Because it protects focusing lens and collimating from back spatter and debris.

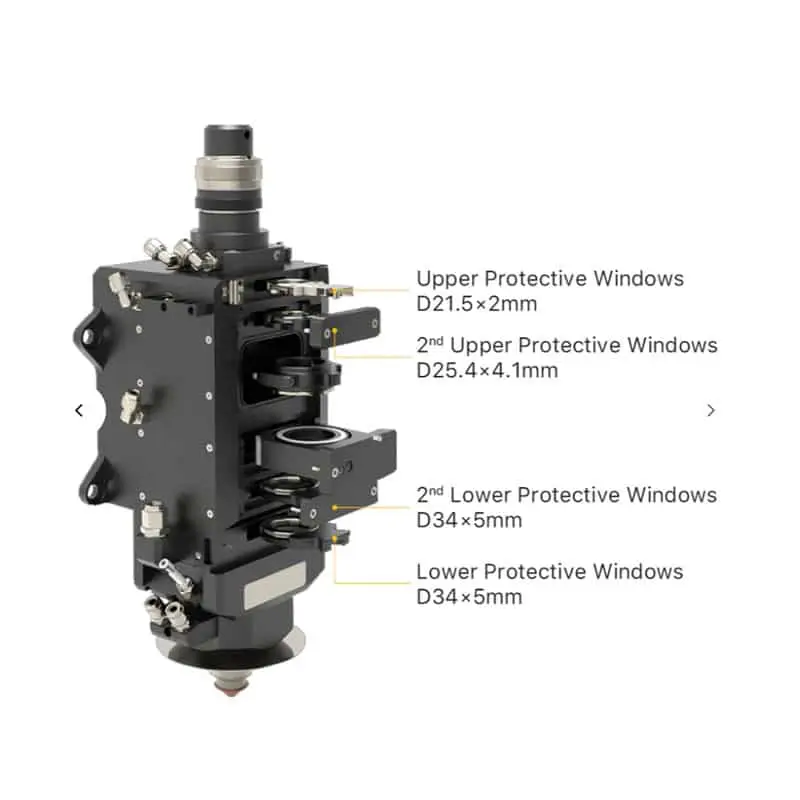

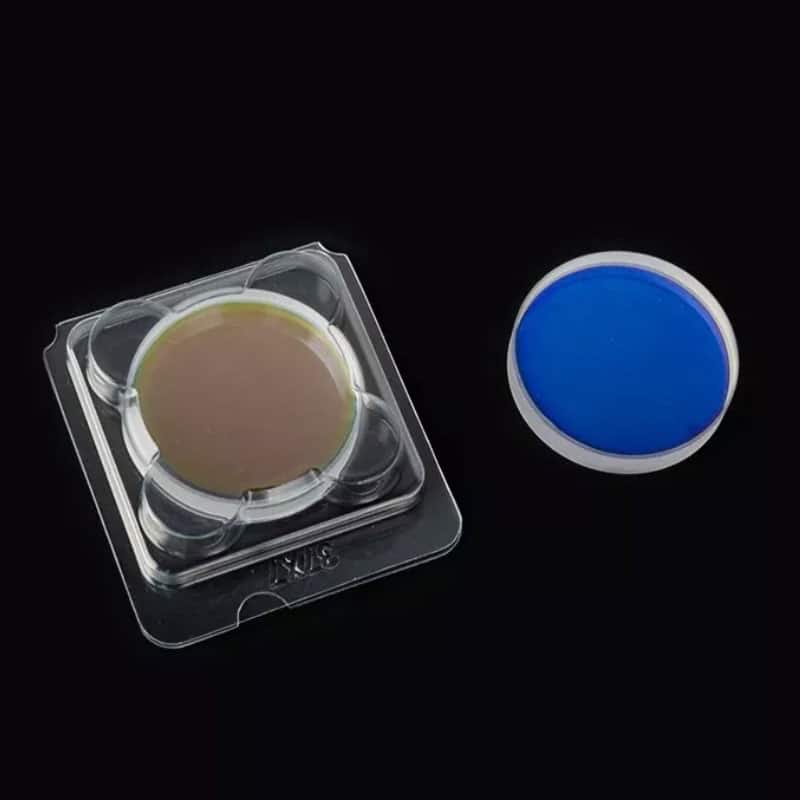

The protective lens is positioned between the lens and the metal sheet. Obviously that it is the most consumed optical element in fiber laser cutting head.
|

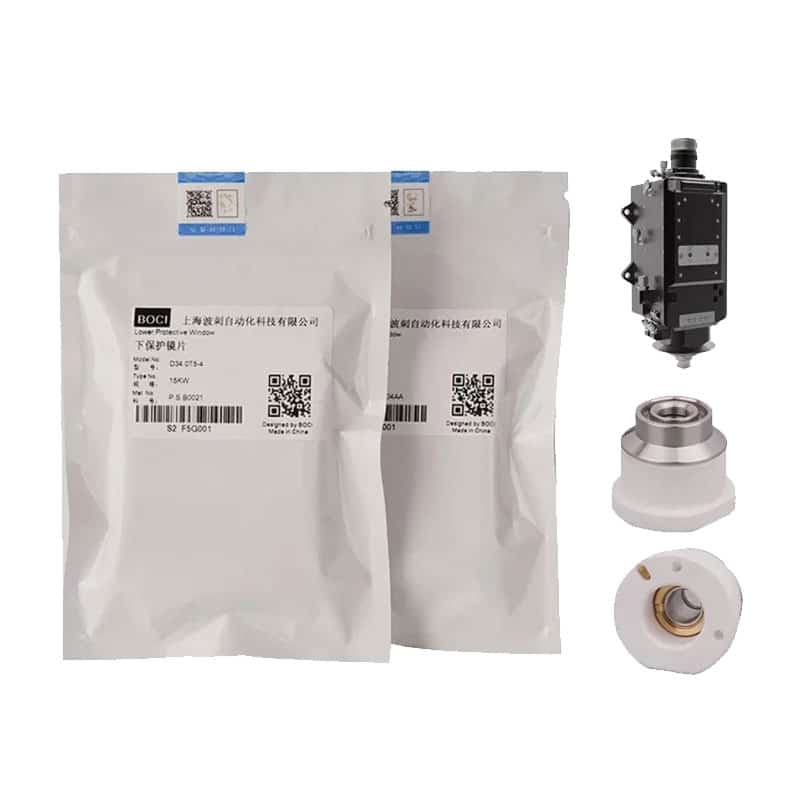

Protective Lenses for BOCI Laser Cutting Heads
|
|||
|---|---|---|---|
|
Model
|
Ref Code
|
Type
|
Suitable for
|
|
D25.4T4-2P (≤8KW)
|
PW02WYZ25.4T4-2P
|
Upper Protective Lens
|
BLT310, BLT310T, BLT421S, BLT421TS, BLT510, BLT520
|
|
D21.5T2-4 (≤15KW)
|
PW02WYZ21.5T2-4
|
Upper Protective Lens
|
BLT420, BLT420S, BLT421, BLT421T, BLT440F, BLT441, BLT441T, BLT641…
|
|
D25.4T4-4 (≤15KW)
|
PW02WYZ25.4T4-4
|
Upper Protective Lens
|
BLT442, BLT442T, BLT442P, BLT520H, BLT540H, BLT642H, BLT840H
|
|
D21.5T2-6 (≤20KW)
|
PW02WYZ21.5T2-6
|
Upper Protective Lens
|
BLT460F, BLT461, BLT461T, BLT661, BLT661H
|
|
D25.4T4-6 (≤20KW)
|
PW02WYZ25.4T4-6
|
Upper Protective Lens
|
BLT462, BLT462T, BLT560H, BLT662H, BLT662MA, BLT860H, BLT462P
|
|
D21.5T2-8 (≤30KW)
|
PW02WYZ21.5T2-8
|
Upper Protective Lens
|
BLT481, BLT681H
|
|
D25.4T4-8 (≤30KW)
|
PW02WYZ25.4T4-8
|
Upper Protective Lens
|
BLT482, BLT482P, BLT682H, BLT682MA
|
|
D21.5T2-10 (≤40KW)
|
PW02WYZ21.5T2-10
|
Upper Protective Lens
|
BLT4101, BLT6101H
|
|
D25.4T4-10 (≤40KW)
|
PW02WYZ25.4T4-10
|
Lower Protective Lens
|
BLT4102P, BLT6102H, BLT6102M, BLT6102MA, BLT9100MA, BLT4102
|
|
D25.4T4-2 (≤4KW)
|
PW02WYZ25.4T4-2
|
Lower Protective Lens
|
BLT310, BLT310T
|
|
D34.0T5-2 (≤8KW)
|
PW02WYZ34T5-2
|
Lower Protective Lens
|
BLT421S, BLT421TS, BLT510, BLT520
|
|
D34.0T5-4 (≤15KW)
|
PW02WYZ34T5-24
|
Lower Protective Lens
|
BLT421, BLT441, BLT441T, BLT442, BLT442T, BLT641, BLT641H, BLT642H…
|
|
D34.0T5-6 (≤20KW)
|
PW02WYZ34T5-6
|
Lower Protective Lens
|
BLT460F, BLT461, BLT462, BLT461T, BLT462T, BLT661, BLT661H, BLT662H…
|
|
D34.0T5-8 (≤30KW)
|
PW02WYZ34T5-8
|
Lower Protective Lens
|
BLT481, BLT482, BLT681H, BLT682H, BLT682MA, BLT482P
|
|
D34.0T5-10 (≤40KW)
|
PW02WYZ34T5-10
|
Lower Protective Lens
|
BLT4101, BLT4102, BLT6101H, BLT6102H, BLT6102MA, BLT4102P…
|
