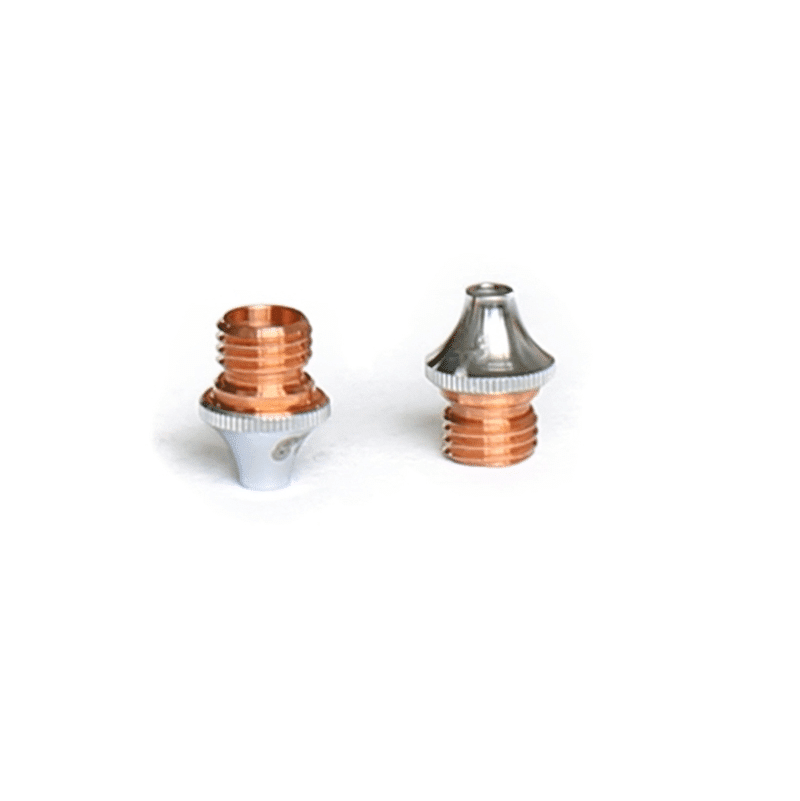

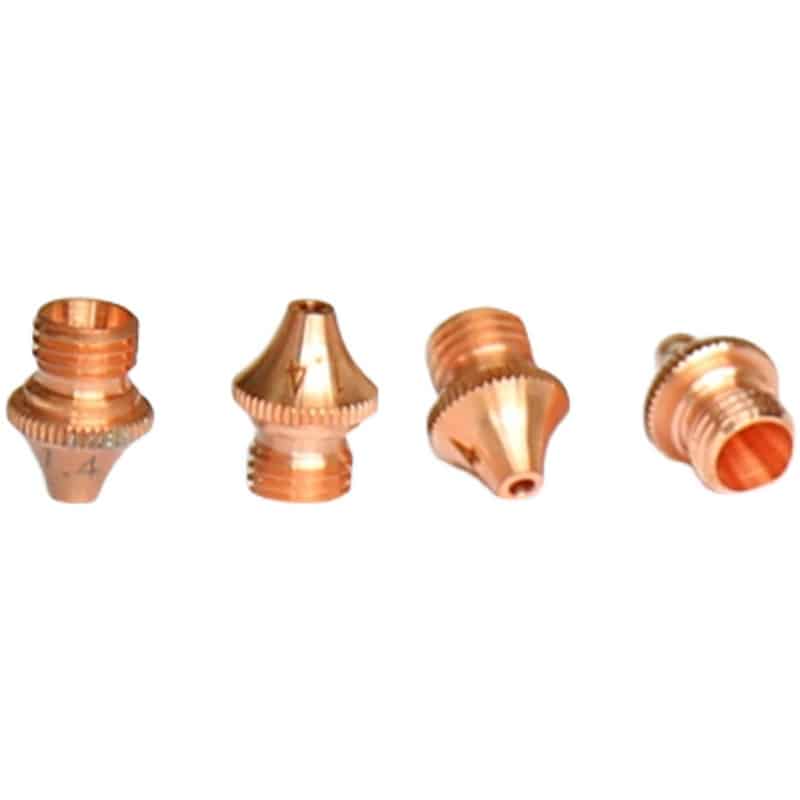

EBF /EBG HD 3D Nozzle

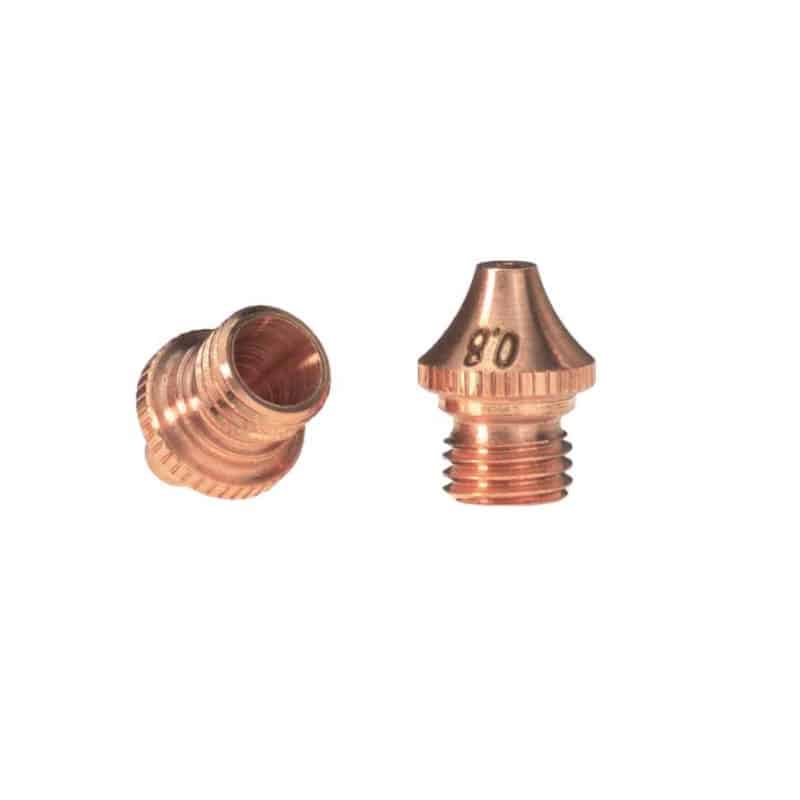

0913799 Nozzle EBG ø 0,8 mm
0913800 Nozzle EBG ø 1,0 mm
1487034 Nozzle EBG ø 1,2 mm
0913801 Nozzle EBG ø 1,4 mm
0937988 Nozzle EBF ø 1,7 mm
1487036 Nozzle EBF ø 2,0 mm
0937989 Nozzle EBF ø 2,3 mm



Trumpf



Picture Model Dia

mm

Height

mm

Caliber

mm

Thread
trumpf nozzles

ECE

124561 ,124562,966809

237497,237501, 1253211

126933,942742

24 10 0.8-3.0 M8
trumpf nozzles

ECE

A-D24H10

Double layer

24 10 0.8-2.0 M8
trumpf nozzles

EAA

1324858,1324860,1324861

1324863,1324864, 1324865

1324866,1324867

25 15.5 0.8-2.3 M12
trumpf nozzles

EAU

2059462,2060001,2060004

2060025,2253595



20 15 2.5-10.0 M10
trumpf nozzles

EAK

1835747

25 15.5 2.5-4.0 M12
trumpf nozzles

EAQ

1809091,1809421,1886199

25 15.5 6.2-9.5 M12

trumpf nozzles

EAN

25 15.5 1.7-2.5 M12
