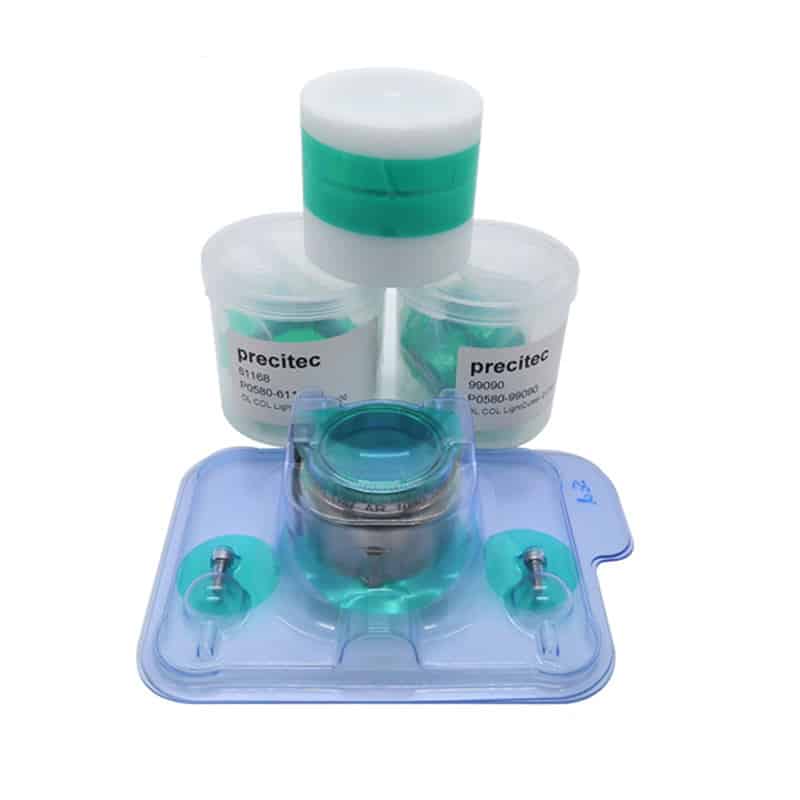

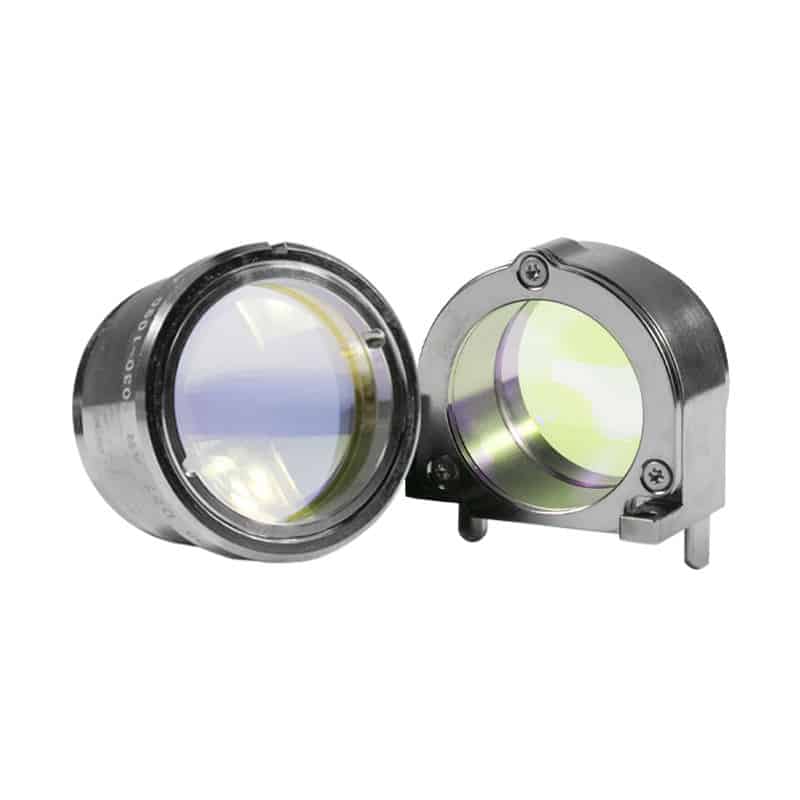

4kw 6kw 8kw 15kw 20kw Collimating & Focus Lens With Holder For Precitec Cutting Head
The collimating lens captures the highly divergent output from the optical fiber and creates a parallel (collimated) beam with reduced divergence enabling moderate propagation distances.
Collimating lenses, as well as focusing lenses present in fiber laser cutting heads, are very sensitive to any type of contamination. For this reason, the majority of fiber laser systems employ protective windows to protect the focusing lens against contamination. Collimating lenses, as well as focusing lenses present in fiber laser cutting heads, are very sensitive to any type of contamination. For this reason, the majority of fiber laser systems employ protective windows to protect the focusing lens against contamination. The protective window is positioned in front of the focusing lens and serves as a barrier between the lens and the metal sheet.
Details about 4kw 6kw 8kw 15kw 20kw Collimating & Focus Lens With Holder For Precitec Cutting Head
The collimating lens is an important part of the laser cutting head. Our OEM Collimating lenses have been strictly tested, and we have a professional maintenance team engaged in maintenance and upgrade services in the domestic market and have accumulated valuable first-hand experience in the process of practice. If you have any questions, please feel free to contact us. The following are general model parameters for your reference:
Precitec Focusing & Collimating Lens
Cutting Head Series
|
Parameters
|
Ref .No
|
Applicable Power
|
HP(CO2)
|
D30F100 collimation
|
PO591-1186
|
4KW
|
D30F125 focusing
|
PO591-1262
|
4KW
|
|
LightCutter 2.0
|
D30F100 collimation
|
PO580-99090
|
6KW
|
D30F150 focusing
|
PO580-99033
|
6KW
|
|
D30F200 focusing
|
PO580-99247
|
6KW
|
|
LightCutter +
|
D30F75 collimation
|
PO580-61117
|
6KW
|
D30F100 collimation
|
PO580-61168
|
6KW
|
|
LightCutter M
|
D30F150 focusing
|
PO580-88933
|
6KW
|
PRO 1.0
|
D37F100 collimation
|
PO595-70867
|
6KW
|
D37F100 collimation
|
PO595-74461
|
8KW
|
|
D37F100 collimation
|
PO595-85548
|
15KW
|
|
D37F100 focusing
|
PO595-70868
|
15KW
|
|
D37F125 focusing
|
PO595-70894
|
15KW
|
|
D37F200 focusing
|
PO595-70900
|
15KW
|
|
PRP 2.0
|
D37F100 collimation
|
PO595-95198
|
8KW
|
D37F100 collimation
|
PO595-95199
|
15KW
|
|
D37F100 collimation
|
PO595-103895
|
20KW
|
|
D37F150 focusing
|
PO595-92268
|
15KW
|
|
D37F200 focusing
|
PO595-92492
|
15KW
|
